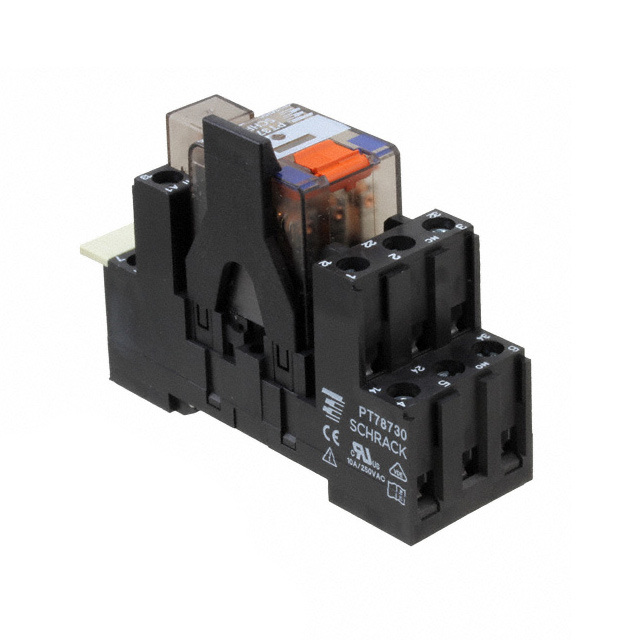

PT3S7LC4

PT3S7LC4 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE 3PDT 10A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for PT3S7LC4

• Description：RELAY GEN PURPOSE 3PDT 10A 24V
• Series：PT, SCHRACK
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Bulk
• Mounting Type：DIN Rail
• Coil Voltage：24VDC
• Contact Form：3PDT (3 Form C)
• Contact Rating (Current)：10:00 AM
• Switching Voltage：400VAC - Max
• Load - Max Switching：4000VA
• Coil Current：30.8 mA
• Coil Type：Non Latching
• Features：Diode, Lighted Indicator, Mechanical Indicator, Socket Included, Test Button
• Termination Style：Screw Terminal
• Seal Rating：-
• Coil Insulation：Class F
• Must Operate Voltage：18 VDC
• Must Release Voltage：2.4 VDC
• Operating Temperature：-40°C ~ 70°C
• Contact Material：Silver Nickel (AgNi)
• Approval Agency：cURus, VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：15 ms
• Release Time：18 ms

Power Relays, Over 2 Amps datasheet and documents for PT3S7LC4
