PXETDLJANF-24.000000

Oscillators Overview

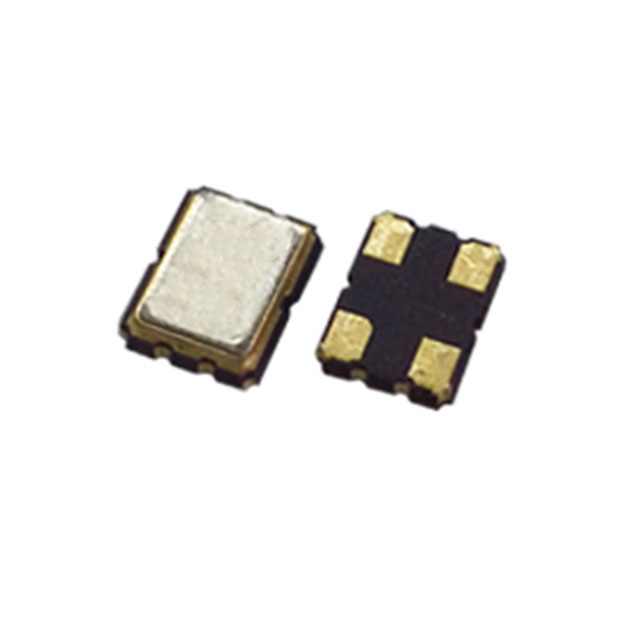

The PXETDLJANF-24.000000 is a standard crystal oscillator (XO) manufactured by Taitien, operating at a frequency of 24 MHz with CMOS output signals. It supports a supply voltage range of 2.8V to 3.3V and features an enable/disable control function. The device is housed in a compact 4-SMD, no lead package measuring 2.50mm x 2.00mm x 1.00mm. It operates within a temperature range of -20°C to 70°C and exhibits a frequency stability of ±50ppm. Maximum supply current is 15mA during operation, reducing to 10µA in the disabled state.

Oscillators Feature Summary

• Integrates enable and disable functionality for power management
• Delivers CMOS logic output signals
• Utilizes a surface-mount 4-SMD no-lead package design

Oscillators Applications

• Digital clock signal generation
• Microcontroller system timing
• Communication interface synchronization

Oscillators Procurement Notes

Verify the specific suffix against official Taitien documentation to confirm exact electrical tolerances and pinout configurations. Ensure the selected variant matches the required supply voltage and load conditions. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and current production status before finalizing procurement orders.

Oscillators Selection Notes

Select this component when a 24 MHz CMOS clock source is required in a small form factor. Consider the ±50ppm stability specification relative to system timing requirements. Evaluate the 2.8V to 3.3V operating range against available power rails. Confirm that the enable/disable feature aligns with system power sequencing needs.

Oscillators Part Context

This oscillator belongs to Taitien's PX series of standard crystal oscillators. The series provides various frequencies and packages for general-purpose timing applications. The PXETDLJANF-24.000000 specifically addresses the need for a 24 MHz reference in consumer electronics and industrial equipment requiring reliable clock signals.

Oscillators Replacement Considerations

Consult Taitien's official substitution guide for compatible alternatives. Verify that any replacement maintains identical pin configuration, voltage levels, and output type.
