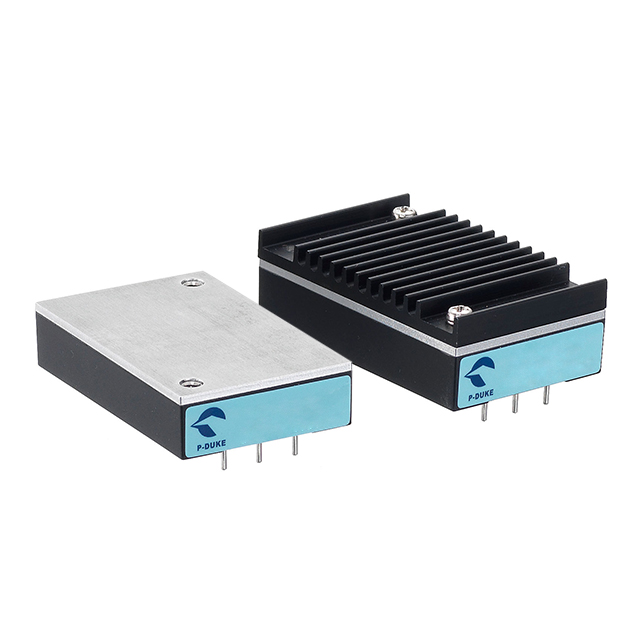

QAE150-48S24W

QAE150-48S24W is listed in the DC DC Converters range at ChipApex. The manufacturer field lists P-DUKE Technology. Its product description is DC DC CONVERTER 24V 120W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for QAE150-48S24W

• Description：DC DC CONVERTER 24V 120W
• Series：QAE150W (132W)
• Mfr：P-DUKE Technology
• Package：Box
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：16.5V
• Voltage - Input (Max)：75V
• Voltage - Output 1：24V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：5A
• Power (Watts)：120 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off, Remote Sense
• Operating Temperature：-40°C ~ 105°C
• Efficiency：90%
• Mounting Type：Through Hole
• Package / Case：Quarter Brick
• Size / Dimension：2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm)
• Supplier Device Package：Quarter Brick
• Control Features：Enable, Active Low
• Approval Agency：CB, CE, cURus
• Standard Number：-

DC DC Converters datasheet and documents for QAE150-48S24W
