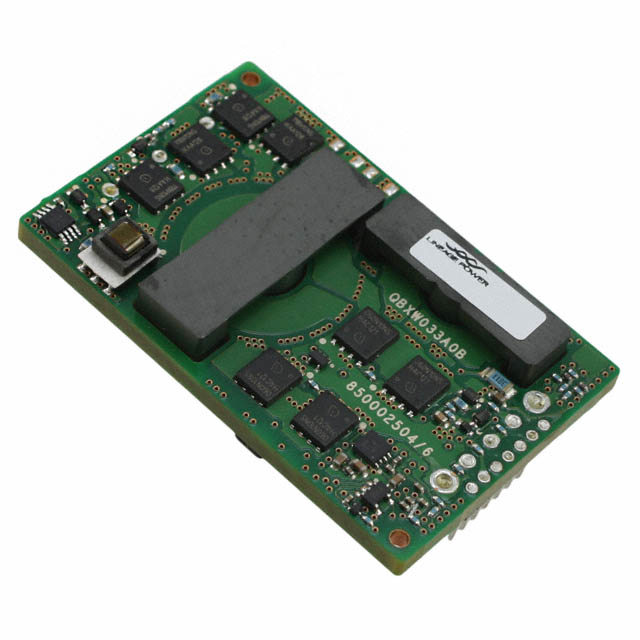

QBDW033A0B41Z

QBDW033A0B41Z is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER 12V 396W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for QBDW033A0B41Z

• Description：DC DC CONVERTER 12V 396W
• Series：Barracuda™ QBDW033A0B (400W)
• Mfr：OmniOn Power™
• Package：Tray
• Type：Intermediate Bus Converter, Digital
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：33A
• Power (Watts)：396 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：95.30%
• Mounting Type：Through Hole
• Package / Case：8-DIP Module, 1/4 Brick
• Size / Dimension：2.30" L x 1.45" W x 0.46" H (58.4mm x 36.8mm x 11.7mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for QBDW033A0B41Z
