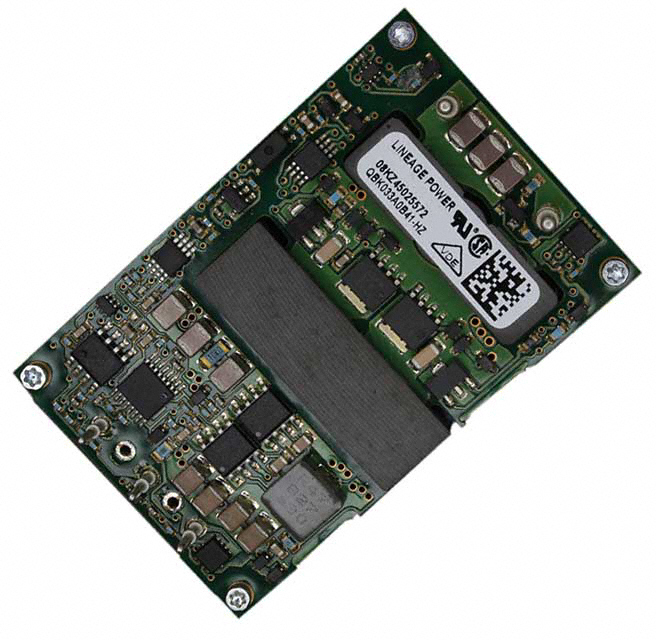

QBK033A0B41-HZ

QBK033A0B41-HZ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER 12V 396W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for QBK033A0B41-HZ

• Description：DC DC CONVERTER 12V 396W
• Series：QBK033A0B
• Mfr：OmniOn Power™
• Package：Bulk
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：60V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：33A
• Power (Watts)：396 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：94.50%
• Mounting Type：Through Hole
• Package / Case：7-DIP Module, 1/4 Brick
• Size / Dimension：2.28" L x 1.45" W x 0.42" H (57.9mm x 36.8mm x 10.7mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for QBK033A0B41-HZ
