QBL8IW15C-CW110

LED Indication - Discrete Overview

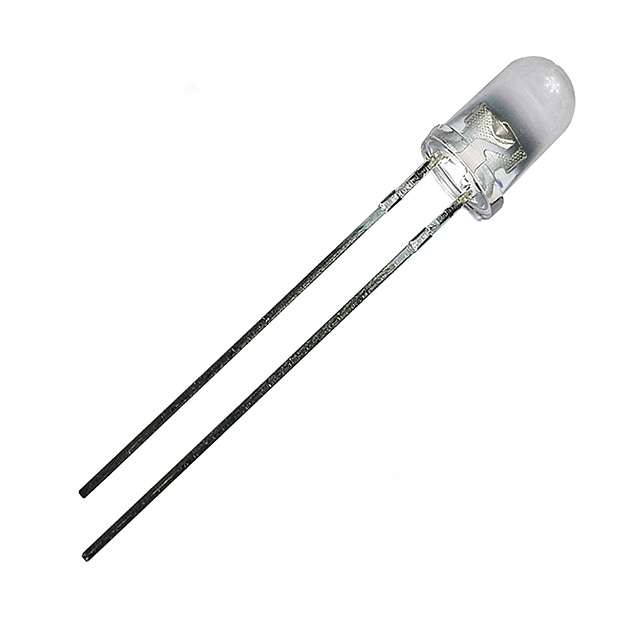

The QBL8IW15C-CW110 is a cool white, 5mm through-hole LED manufactured by QT Brightek. It operates with a typical forward voltage of 3.1V and delivers a high brightness rating of 32,000mcd. The component features a clear lens style and a narrow viewing angle of 15 degrees, designed for radial mounting applications.

LED Indication - Discrete Feature Summary

• High-intensity output suitable for long-distance visibility
• Narrow beam distribution for focused illumination
• Radial lead configuration for standard PCB insertion

LED Indication - Discrete Applications

• High-visibility status indicators
• Remote optical sensing receivers
• Focused light source modules

LED Indication - Discrete Procurement Notes

Verify the specific binning requirements for chromaticity coordinates and luminous intensity to ensure consistency in high-brightness applications. Confirm that the 15-degree viewing angle aligns with the optical design constraints of the target assembly. Ensure the radial lead spacing matches the printed circuit board footprint specifications before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when high luminous intensity is required within a narrow angular field. The 5mm through-hole package offers robust mechanical stability compared to surface-mount alternatives. Consider the 3.1V forward voltage drop for power supply calculations and thermal management strategies in dense circuit layouts.

LED Indication - Discrete Part Context

This part belongs to the QBL8 series of 5mm LEDs from QT Brightek. It is distinguished by its exceptionally high brightness rating and clear lens construction. The product line targets applications demanding maximum visibility over distance or in bright ambient environments where standard diffused LEDs would be insufficient.

LED Indication - Discrete Replacement Considerations

No public confirmed substitute part numbers are available.
