QTLP610CRAGTR

LED Indication - Discrete Overview

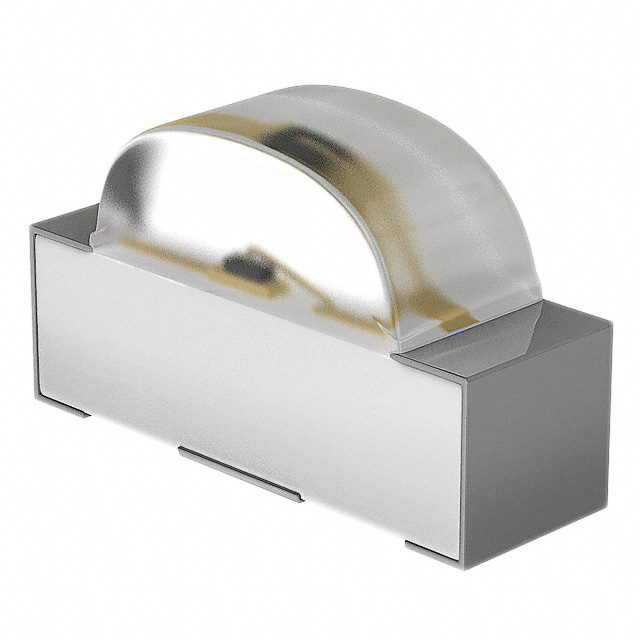

The QTLP610CRAGTR is a single-color red LED from Everlight Electronics, designed for surface-mount applications. It features a rectangular water-clear lens with a peak wavelength of 630 nm and a viewing angle of 120 degrees. The component operates within a temperature range of -40 °C to +85 °C and has a maximum forward current rating of 30 mA. Packaged in a 3 x 2 mm SMD housing with a height of 1 mm, it utilizes a tape and reel delivery method for automated assembly processes.

LED Indication - Discrete Feature Summary

• Rectangular surface-mount package with water-clear lens
• Wide 120-degree viewing angle for broad visibility
• Compliant with RoHS environmental standards

LED Indication - Discrete Applications

• Panel status indicators
• Equipment power indicators
• Consumer electronics signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix 'RA' against official Everlight documentation to confirm exact binning or lens treatment specifications. Ensure compatibility with standard reflow soldering profiles defined in the datasheet. Confirm moisture sensitivity level handling procedures prior to assembly to maintain device reliability during manufacturing.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a compact 3x2mm footprint with high visibility due to the wide viewing angle. Consider the 30mA maximum forward current limit when designing drive circuits. Verify that the red color spectrum at 630nm meets the visual requirements of the target application interface.

LED Indication - Discrete Part Context

This part belongs to the QTLP610 series of single-color LEDs manufactured by Everlight Electronics. The series offers various color options within a standardized surface-mount package format. The QTLP610CRAGTR specifically denotes the red variant with particular optical characteristics suitable for general indication purposes in electronic assemblies.

LED Indication - Discrete Replacement Considerations

Consult official substitution lists for compatible variants such as QTLP610C-R or other colors in the same package family if functional equivalence is required. Verify pinout and thermal characteristics before replacing with alternative manufacturers' components.
