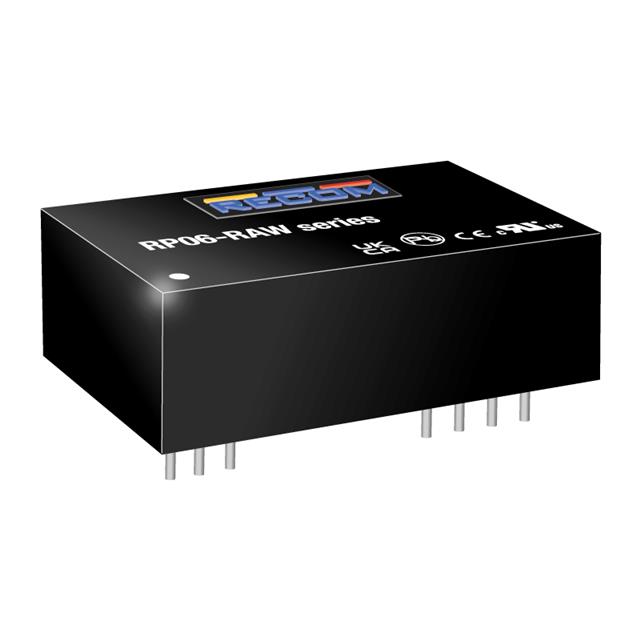

RP06-11012DRAW

RP06-11012DRAW is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is 6W DC/DC-CONVERTER 'POWERLINE' D. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RP06-11012DRAW

• Description：6W DC/DC-CONVERTER 'POWERLINE' D
• Series：RP06-RAW (6W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：160V
• Voltage - Output 1：12V
• Voltage - Output 2：-12V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：250mA, 250mA
• Power (Watts)：6 W
• Voltage - Isolation：3 kV
• Applications：Medical
• Features：Adjustable Output
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：85%
• Mounting Type：Through Hole
• Package / Case：24-DIP Module, 10 Leads
• Size / Dimension：1.25" L x 0.80" W x 0.42" H (31.8mm x 20.3mm x 10.7mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE, cURus, UKCA
• Standard Number：60601-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for RP06-11012DRAW
