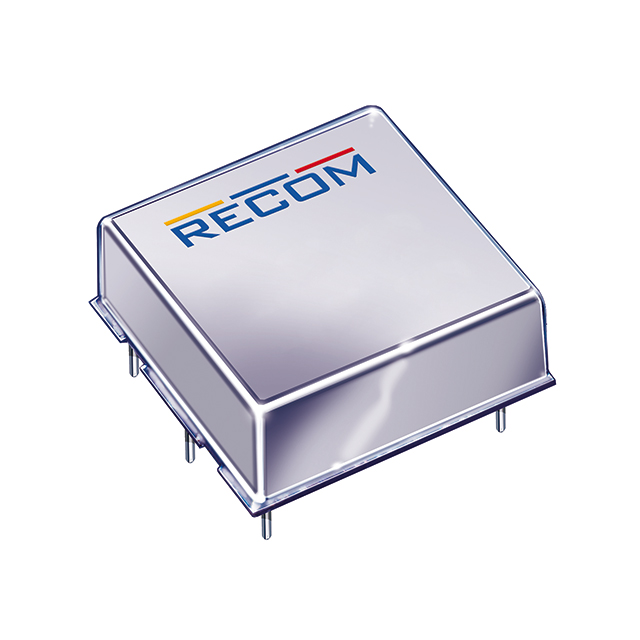

RP10-4815DA/P

RP10-4815DA/P is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER +/-15V 10W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RP10-4815DA/P

• Description：DC DC CONVERTER +/-15V 10W
• Series：POWERLINE RP10-A (10W)
• Mfr：Recom Power
• Package：Tube,Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：15V
• Voltage - Output 2：-15V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：333mA, 333mA
• Power (Watts)：10 W
• Voltage - Isolation：1.6 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 80°C
• Efficiency：90%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：-

DC DC Converters datasheet and documents for RP10-4815DA/P
