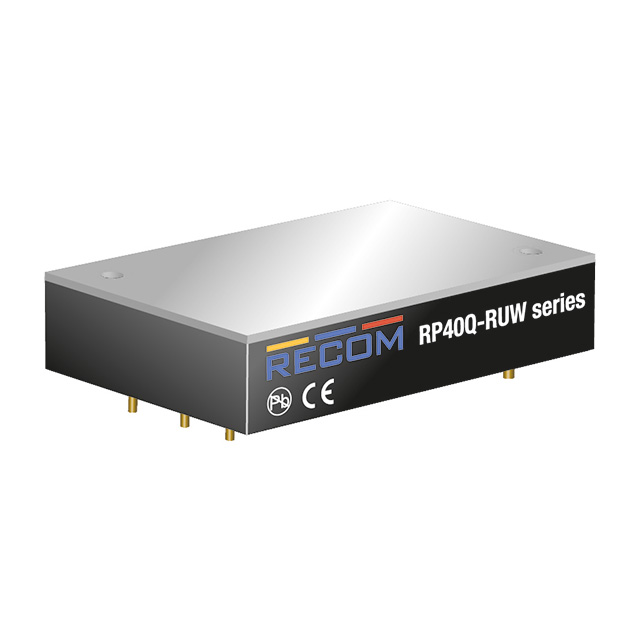

RP40Q-11015SRUW/N-HC

RP40Q-11015SRUW/N-HC is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER 15V 40W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RP40Q-11015SRUW/N-HC

• Description：DC DC CONVERTER 15V 40W
• Series：POWERLINE RP40Q-RUW (40W)
• Mfr：Recom Power
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：16V
• Voltage - Input (Max)：160V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：2.67A
• Power (Watts)：40 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial), Railway
• Features：Remote On/Off, OCP, OTP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：90%
• Mounting Type：Through Hole
• Package / Case：Quarter Brick
• Size / Dimension：2.28" L x 1.45" W x 1.00" H (57.9mm x 36.8mm x 25.4mm)
• Supplier Device Package：Quarter Brick
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for RP40Q-11015SRUW/N-HC
