RRE02VTM4SFHTR

Single Diodes Overview

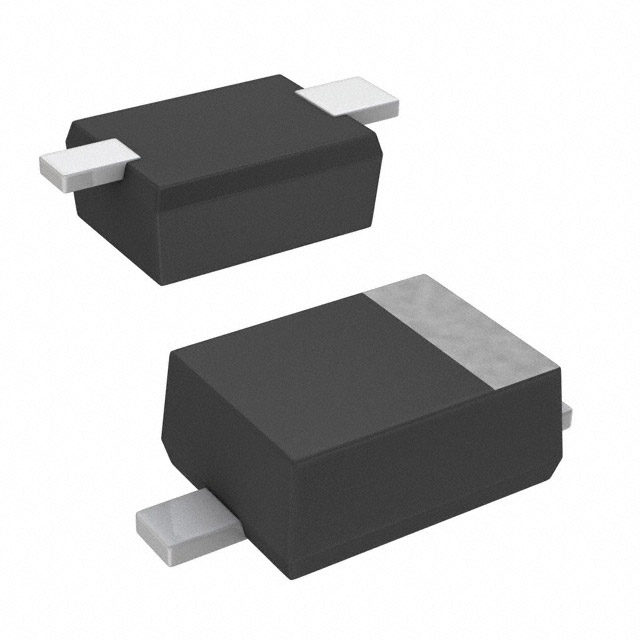

The RRE02VTM4SFHTR is a silicon epitaxial planar standard rectifier diode designed for automotive applications, complying with AEC-Q101 standards. It features a single configuration in an SOD-323HE (TUMD2SM) surface-mount package. Key electrical parameters include a maximum repetitive reverse voltage of 400V and an average rectified forward current of 0.2A. The device exhibits a low forward voltage of 1.1V maximum at 0.2A and a maximum reverse current of 0.001mA at 400V. It supports a peak forward surge current of 1.0A and operates within a junction temperature range up to 150°C.

Single Diodes Feature Summary

• Automotive-grade reliability certified under AEC-Q101 standards
• Low forward voltage design for improved efficiency
• Compact small mold type TUMD2SM package

Single Diodes Applications

• Automotive electronic circuits requiring high-reliability rectification
• General-purpose power supply rectification
• High-voltage DC blocking applications

Single Diodes Procurement Notes

Verify the specific suffix 'TR' indicates tape-and-reel packaging when ordering. Confirm that the component meets AEC-Q101 requirements for your specific automotive grade needs. Ensure the SOD-323HE footprint matches your PCB layout constraints. Check for any RoHS compliance documentation if required by your manufacturing process. Validate the 400V rating against your circuit's peak inverse voltage conditions.

Single Diodes Selection Notes

Select this component when a compact, automotive-qualified rectifier with 400V capability is required. The low forward voltage characteristic makes it suitable for efficiency-sensitive designs. Consider the 0.2A current limit for appropriate load matching. The SOD-323HE package offers space-saving advantages over larger through-hole alternatives. Ensure thermal management aligns with the 150°C junction temperature specification.

Single Diodes Part Context

This part belongs to ROHM Semiconductor's lineup of automotive standard rectifier diodes. These components are engineered for high reliability in harsh automotive environments. The series utilizes silicon epitaxial planar technology for consistent performance. The product line emphasizes compact packaging solutions like the TUMD2SM form factor.

Single Diodes Replacement Considerations

The RRE02VS4S is listed as a similar level replacement with the same pinout and package, though it uses the TUMD2S package variant. Verify compatibility before substitution.
