RTCN-5040

Power Line Filter Modules Overview

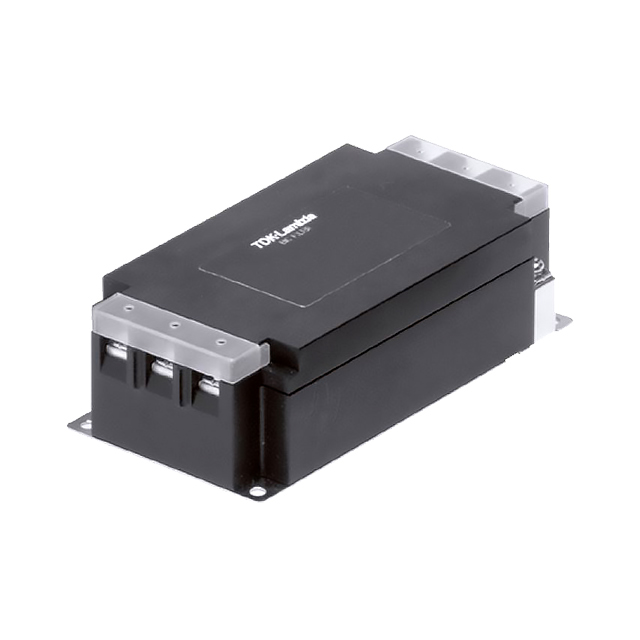

The TDK-Lambda RTCN-5040 is a three-phase power line EMI/EMC filter designed for chassis mounting. It features a single-stage filtering architecture with screw terminal connections. The unit supports a rated voltage of 500VAC and 500VDC, handling a maximum current of 40A. Physical dimensions are approximately 170mm in width, 90mm in height, and 54mm in depth.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase power lines
• Supports both AC and DC voltage ratings up to 500V
• Utilizes a robust chassis mount design for industrial integration

Power Line Filter Modules Applications

• Industrial machinery power systems
• Three-phase motor drive installations
• General purpose power distribution units

Power Line Filter Modules Procurement Notes

Verify the specific datasheet revision and physical footprint compatibility before procurement. Confirm that the 40A current rating aligns with the system's peak load requirements. Ensure the chassis mounting holes match the installation panel specifications. Check for any regional compliance certifications required for the target market deployment.

Power Line Filter Modules Selection Notes

Select this model when three-phase EMI reduction is required for high-current applications up to 40A. Consider the physical size constraints as it requires significant chassis space. Evaluate if the single-stage performance meets the specific attenuation needs or if higher performance variants are necessary.

Power Line Filter Modules Part Context

This component belongs to the RTCN series of power line filters from TDK-Lambda. The series offers various current ratings and form factors for different industrial power management needs. The RTCN-5040 specifically addresses the 40A requirement within this product family.

Power Line Filter Modules Replacement Considerations

Consult official TDK-Lambda documentation for direct cross-references. Verify pinout and dimensional compatibility before substituting with other manufacturers' components.
