RTEN-5010D

Power Line Filter Modules Overview

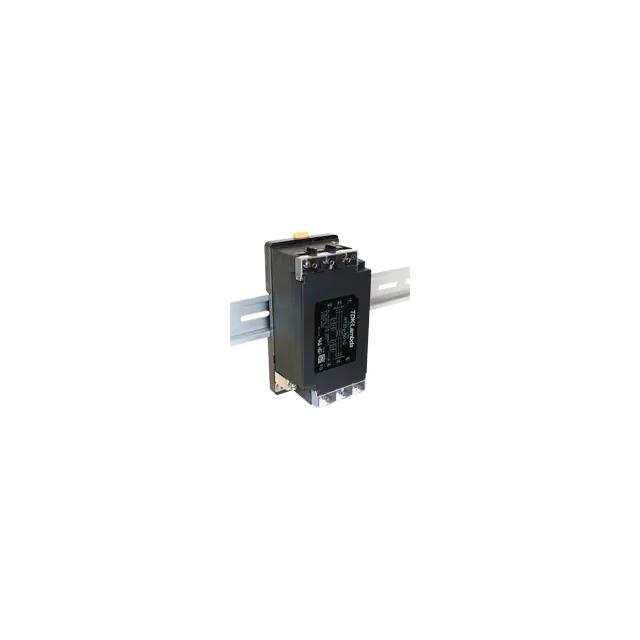

The RTEN-5010D is a three-phase (delta) EMC/EMI power line filter from the TDK-Lambda RTEN series. It features a low-profile chassis mount design with screw termination for secure connections. The unit supports a rated voltage of 500 VAC and 500 VDC, with a current rating of 10 A. Operating at 60 Hz, it maintains a maximum leakage current of 5 mA. The filter ensures attenuation of 25 dB within specific frequency bands: 0.3–8 MHz for common mode and 0.2–30 MHz for differential mode. It complies with UL 1283 and EN 60939 safety standards.

Power Line Filter Modules Feature Summary

• Provides effective noise suppression for three-phase delta systems through dedicated common and differential mode filtering stages.
• Utilizes a low-profile chassis mount form factor to facilitate integration into space-constrained industrial enclosures.
• Ensures electrical safety and regulatory compliance with UL 1283 and EN 60939 certifications.

Power Line Filter Modules Applications

• Industrial machinery requiring EMI/EMI noise reduction in three-phase power supplies
• Medical equipment installations adhering to strict electromagnetic compatibility standards
• Automated manufacturing systems utilizing 500V AC/DC power architectures

Power Line Filter Modules Procurement Notes

Verify that the specific order matches the RTEN-5010D designation, as the standard RTEN-5010 lacks DIN rail mounting options. Confirm lead times, which may extend up to 37 weeks depending on manufacturer schedules. Ensure the application environment remains within the specified temperature range of -25°C to +85°C and humidity limits of 15% to 85% RH without condensation to maintain performance integrity.

Power Line Filter Modules Selection Notes

Select the RTEN-5010D when a 10 A capacity is required for three-phase delta configurations. Choose this model over the RTEN-5010 if DIN rail mounting capability is necessary, as the 'D' suffix indicates the DIN rail compatible variant. Ensure the system voltage does not exceed 500 VAC or 500 VDC. Verify that the required attenuation frequencies align with the 0.3–8 MHz common mode and 0.2–30 MHz differential mode specifications provided in the datasheet.

Power Line Filter Modules Part Context

This component belongs to the RTEN series of ultra-thin power line filters manufactured by TDK-Lambda. The series includes variants such as RTEN-5006, RTEN-5020, and RTEN-5030, offering different current ratings from 6 A to 50 A. The RTEN-5010D specifically addresses the 10 A requirement within this lineup, providing a balance between compact dimensions and high-current handling capabilities for industrial EMC applications.

Power Line Filter Modules Replacement Considerations

The RTEN-5010D serves as the DIN rail mounting variant of the RTEN-5010. For direct functional substitution in existing designs requiring chassis mounting, the RTEN-5010 is the equivalent base model. No other cross-series replacements are confirmed in public documentation.

Power Line Filter Modules FAQ

What is the difference between RTEN-5010 and RTEN-5010D?

The RTEN-5010D is the DIN rail mounting version of the RTEN-5010, which is designed for chassis mounting. Both share identical electrical specifications, including 10 A current rating and 500 VAC voltage rating.

What are the attenuation frequency bands for this filter?

The filter ensures 25 dB attenuation in the 0.3–8 MHz range for common mode noise and the 0.2–30 MHz range for differential mode noise.
