S25FL127SABNFI100

Memory IC Overview

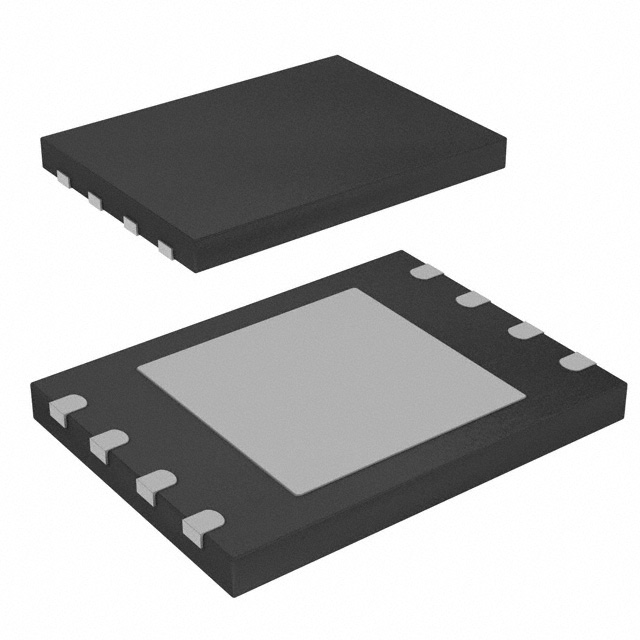

The S25FL127SABNFI100 is a 128 Mb (16 MB) SPI NOR flash memory utilizing MIRRORBIT technology and Eclipse architecture. It operates on a 3.0 V core with a supply voltage range of 2.7 V to 3.6 V. The device supports SPI clock frequencies up to 108 MHz, enabling Fast Read speeds of 13.5 MBps and Quad Read speeds of 54 MBps. It features a hybrid sector size option with sixteen 4-KB sectors and remaining 64-KB sectors, or uniform 256-KB sectors. The component includes a 1024-byte One-Time Programmable (OTP) array, hardware ECC, and Advanced Sector Protection. It is housed in an 8-WSON package and supports industrial temperature ranges.

Memory IC Feature Summary

• Supports Multi-I/O commands including Normal, Fast, Dual, and Quad read operations for high-speed data transfer.
• Features AutoBoot capability to automatically execute code from a preselected address upon power-up or reset.
• Includes internal hardware error correction code generation for single-bit error correction during programming.
• Provides Advanced Sector Protection allowing individual sector protection controlled by boot code or password.

Memory IC Applications

• Code shadowing applications
• Execute-in-Place (XIP) systems
• Embedded data storage

Memory IC Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm package type, temperature grade, and lead-free status. Confirm that the required sector configuration matches the device's hybrid or uniform sector options. Ensure compatibility with host system voltage levels within the specified 2.7 V to 3.6 V range. Check for any recent product change notices regarding pinout or electrical specifications.

Memory IC Selection Notes

Select this component when a 128 Mb density SPI NOR flash with high-speed Quad I/O capabilities is required. It is suitable for designs needing AutoBoot functionality and advanced security features like individual sector protection. Consider the 8-WSON package if space constraints exist. Verify that the host controller supports the necessary SPI modes and command sets for Multi-I/O operations.

Memory IC Part Context

This part belongs to the FL-S family of SPI flash memories, which are compatible with prior FL-K and FL-P families in terms of command set and footprint. It utilizes 65-nm process lithography and the Eclipse architecture for improved performance compared to floating gate technologies. The device offers migration paths for existing designs while providing enhanced features such as extended addressing and hardware ECC.

Memory IC Replacement Considerations

S25FL128SAGNFI000 is listed as a manufacturer-recommended substitute.

Memory IC FAQ

Does the S25FL127S support Deep Power Down?

No, the Deep Power Down function is not supported in FL-S family devices. The legacy DPD command code is instead used to enable legacy SPI memory controllers to access the bank address register.

What is the erase command limitation for 4-KB sectors?

The 4-KB erase command is supported only for use on the sixteen 4-KB parameter sectors located at the top or bottom of the device address space. It cannot be used on other sectors if the uniform sector configuration is selected.
