SATCA-2A1CG-WFB7

Antennas RF Overview

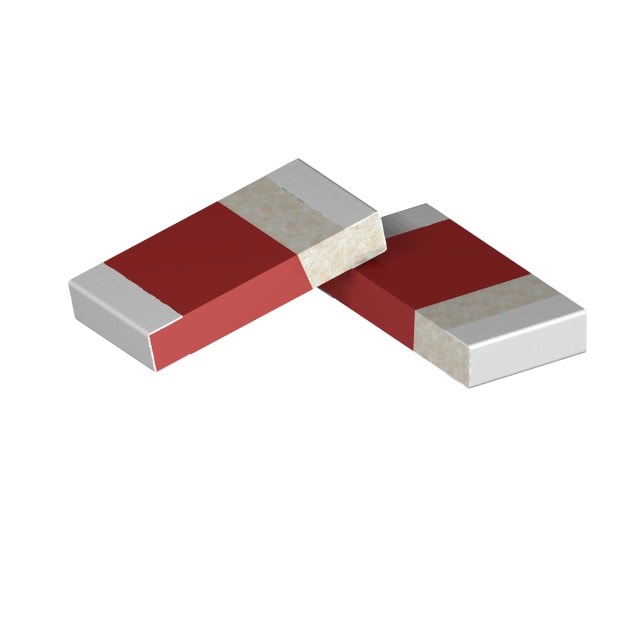

The SATCA-2A1CG-WFB7 is a surface-mount chip antenna manufactured by Suntsu Electronics, Inc. Designed for compact RF applications, this component supports Bluetooth, ISM, Wi-Fi, and Zigbee protocols. It features a miniature footprint measuring 2.0mm x 1.2mm x 0.6mm, facilitating integration into space-constrained electronic devices. The antenna utilizes solder surface mount technology for reliable PCB attachment.

Antennas RF Feature Summary

• Supports multiple wireless communication standards including Bluetooth, ISM, Wi-Fi, and Zigbee
• Compact physical dimensions suitable for space-constrained designs
• Surface mount construction for automated assembly processes

Antennas RF Applications

• Bluetooth-enabled consumer electronics
• ISM band industrial sensors
• Wi-Fi connected IoT modules
• Zigbee home automation devices

Antennas RF Procurement Notes

Verify the specific datasheet version when sourcing to ensure compliance with current RoHS and REACH regulations. Confirm that the supplier provides traceability documentation matching the manufacturer's original specifications. Cross-reference the part number suffixes to guarantee the correct package type and material composition before finalizing procurement orders.

Antennas RF Selection Notes

Select this component when design constraints require a low-profile antenna solution supporting diverse short-range wireless protocols. Evaluate the mechanical stability of the 2.0mm x 1.2mm footprint against board flex requirements. Ensure the host circuitry matches the impedance characteristics required for the supported frequency bands to maintain signal integrity.

Antennas RF Part Context

This model belongs to the SATCA series of chip antennas produced by Suntsu Electronics, Inc. The series focuses on providing versatile RF solutions for modern wireless connectivity needs. The WFB7 suffix typically denotes specific packaging or material variations within the product line, distinguishing it from other variants in the same family.

Antennas RF Replacement Considerations

Consult official substitution lists for compatible alternatives. Verify that any replacement maintains identical electrical performance and physical dimensions to ensure seamless integration without redesigning the host PCB layout.
