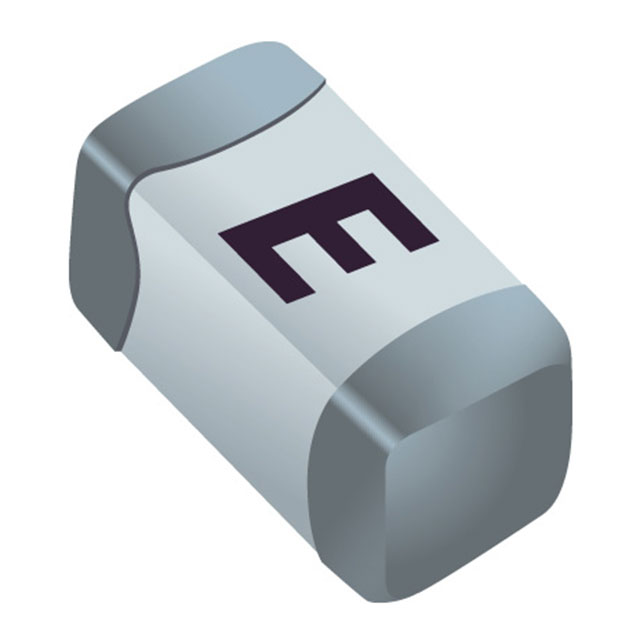

SF-0603S075M-2

SF-0603S075M-2 is listed in the Fuses range at ChipApex. The manufacturer field lists Bourns Inc.. Its product description is FUSE BOARD MNT 750MA 63VDC 0603. Review the specifications below when checking this part for your BOM.

Fuses specifications for SF-0603S075M-2

• Description：FUSE BOARD MNT 750MA 63VDC 0603
• Series：SinglFuse™ SF-0603SxxxM
• Mfr：Bourns Inc.
• Package：Tape & Reel (TR),Cut Tape (CT)
• Mounting Type：Surface Mount
• Fuse Type：Board Mount (Cartridge Style Excluded)
• Current Rating (Amps)：750 mA
• Voltage Rating - DC：63 V
• Response Time：Slow Blow
• Package / Case：0603 (1608 Metric)
• Breaking Capacity @ Rated Voltage：35A
• Melting I²t：0.006
• Approval Agency：-
• Operating Temperature：-55°C ~ 125°C
• Color：-
• Size / Dimension：0.063" L x 0.031" W x 0.037" H (1.60mm x 0.80mm x 0.95mm)
• Voltage Rating - AC：-

Fuses datasheet and documents for SF-0603S075M-2
