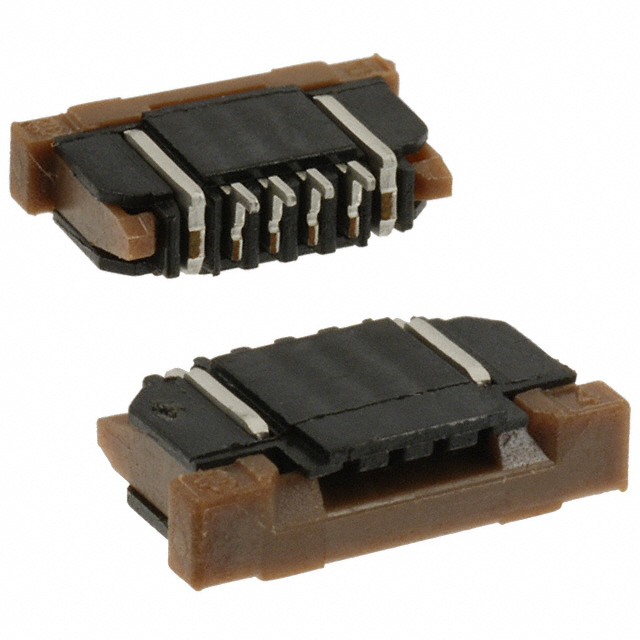

SFW4R-4STE1

SFW4R-4STE1 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN FFC FPC TOP 4POS 1MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for SFW4R-4STE1

• Description：CONN FFC FPC TOP 4POS 1MM R/A
• Series：SFW-R
• Mfr：Amphenol ICC (FCI)
• Package：Tape & Reel (TR)
• Flat Flex Type：FFC, FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Top
• Number of Positions：4
• Pitch：0.039" (1.00mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm, 0.33mm
• Height Above Board：0.106" (2.70mm)
• Locking Feature：Slide Lock
• Cable End Type：Notched
• Contact Material：Phosphor Bronze
• Contact Finish：Tin Alloy
• Housing Material：Polyphenylene Sulfide (PPS), Glass Filled
• Actuator Material：Polyphenylene Sulfide (PPS), Glass Filled
• Features：Zero Insertion Force (ZIF)
• Voltage Rating：-
• Operating Temperature：-
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for SFW4R-4STE1
