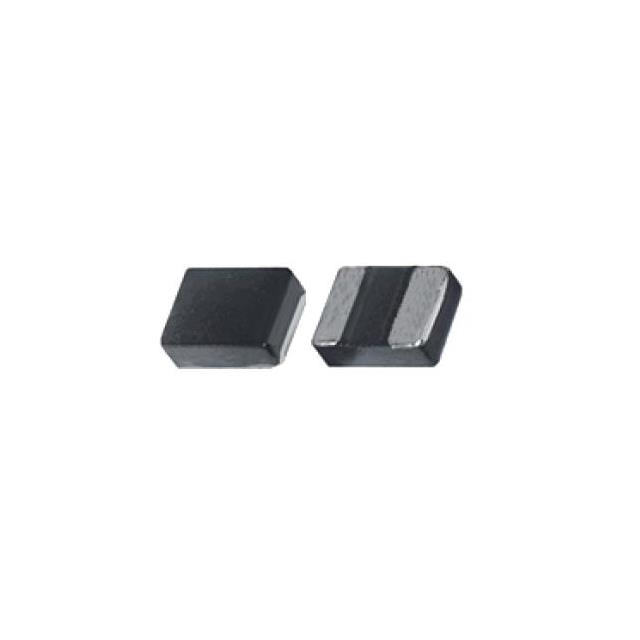

SIM06R68M10MAE

SIM06R68M10MAE is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Meritek. Its product description is MOLDED IND 0806 0.68UH M SHLD AE. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for SIM06R68M10MAE

• Description：MOLDED IND 0806 0.68UH M SHLD AE
• Series：SIM
• Mfr：Meritek
• Package：Tape & Reel (TR),Strip
• Type：Molded
• Material - Core：Metal
• Inductance：0.68 µH
• Tolerance：±20%
• Current Rating (Amps)：3.4 A
• Current - Saturation (Isat)：4.4A
• Shielding：Shielded
• DC Resistance (DCR)：50mOhm Max
• Q @ Freq：-
• Frequency - Self Resonant：-
• Ratings：AEC-Q200
• Operating Temperature：-55°C ~ 150°C
• Inductance Frequency - Test：100 kHz
• Mounting Type：Surface Mount
• Package / Case：0806 (2016 Metric)
• Supplier Device Package：0806 (2016 Metric)
• Size / Dimension：0.079" L x 0.063" W (2.00mm x 1.60mm)
• Height - Seated (Max)：0.031" (0.80mm)
• Features：Molded Inductors, Molding Power Choke

Fixed Inductors datasheet and documents for SIM06R68M10MAE
