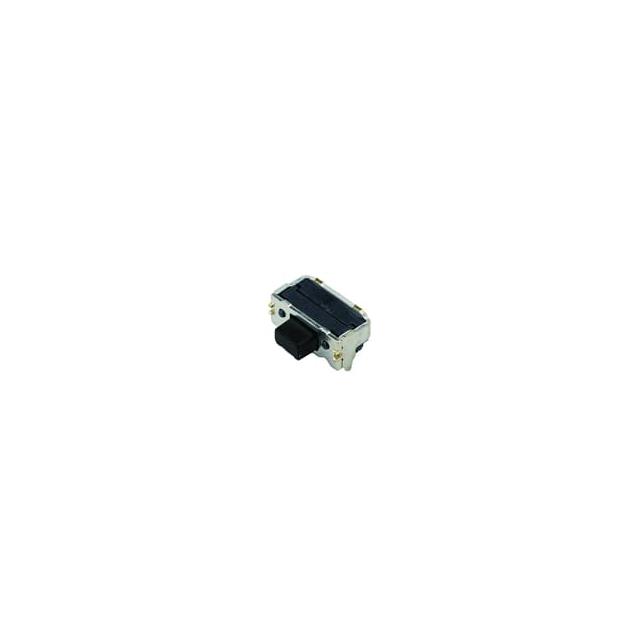

SKTDLDE010

SKTDLDE010 is listed in the Tactile Switches range at ChipApex. The manufacturer field lists Alps Alpine. Its product description is SWITCH TACTILE SPST-NO 0.05A 12V. Review the specifications below when checking this part for your BOM.

Tactile Switches specifications for SKTDLDE010

• Description：SWITCH TACTILE SPST-NO 0.05A 12V
• Series：SKTD
• Mfr：Alps Alpine
• Package：Tape & Reel (TR),Cut Tape (CT)
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Contact Rating @ Voltage：0.05A @ 12VDC
• Actuator Type：Rectangular Button
• Mounting Type：Surface Mount, Right Angle
• Actuator Height off PCB, Vertical：-
• Actuator Length, Right Angle：2.90mm
• Actuator Orientation：Side Actuated
• Termination Style：Gull Wing
• Outline：3.90mm x 1.95mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Operating Force：163gf
• Ingress Protection：-
• Features：-
• Operating Temperature：-30°C ~ 85°C

Tactile Switches datasheet and documents for SKTDLDE010
