SL 10 SMD 062 5 Z B SM

Headers, Male Pins Overview

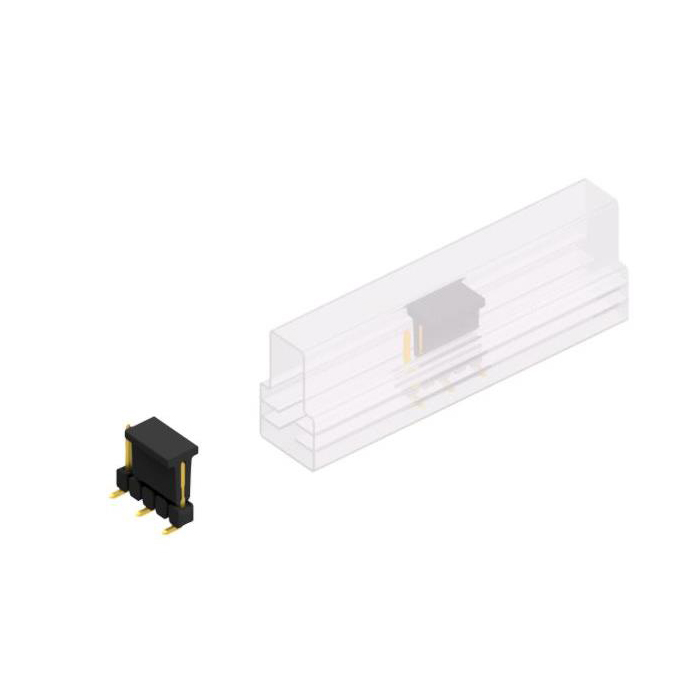

The SL 10 SMD 062 5 Z B SM is a board connector from Fischer Elektronik featuring five male contacts arranged in a single row with a 2.54 mm pitch. It utilizes surface mount technology for straight installation on printed circuit boards. The component includes tin-plated termination and contact finishes to ensure reliable electrical connections. This specific variant is packaged in a bar magazine format, designated by the suffix B SM, facilitating automated assembly processes.

Headers, Male Pins Feature Summary

• Surface mount design for direct PCB integration
• Tin-plated contacts for corrosion resistance
• Single row male header configuration
• Bar magazine packaging for pick-and-place automation

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• Automated surface-mount assembly lines

Headers, Male Pins Procurement Notes

Verify that the ordering code matches the exact specification for five positions with tin plating and bar magazine packaging. Confirm compatibility with standard 2.54 mm pitch headers. Ensure storage conditions maintain integrity of the tin finish prior to soldering. Cross-reference the manufacturer's latest documentation to confirm current availability and compliance status before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, surface-mount male header is required for compact electronic assemblies. The five-position count suits applications needing minimal I/O routing. Tin plating offers cost-effective reliability compared to gold variants. The bar magazine option supports high-volume manufacturing environments requiring efficient handling and placement.

Headers, Male Pins Part Context

This part belongs to the SL 10 SMD series of pin headers designed for surface mounting. The series provides various contact counts ranging from four to twenty positions. Standard features include a 2.54 mm pitch and straight orientation. Variations exist regarding plating options and packaging types to suit different production needs.

Headers, Male Pins Replacement Considerations

Compatible substitutes within the same series include SL 10 SMD 062 4 Z B SM and SL 10 SMD 062 6 Z B SM. These parts share identical mechanical dimensions and electrical characteristics but differ only in the number of contacts. Verify pin count requirements before substituting.
