SL 10 SMD 062 7 G

Headers, Male Pins Overview

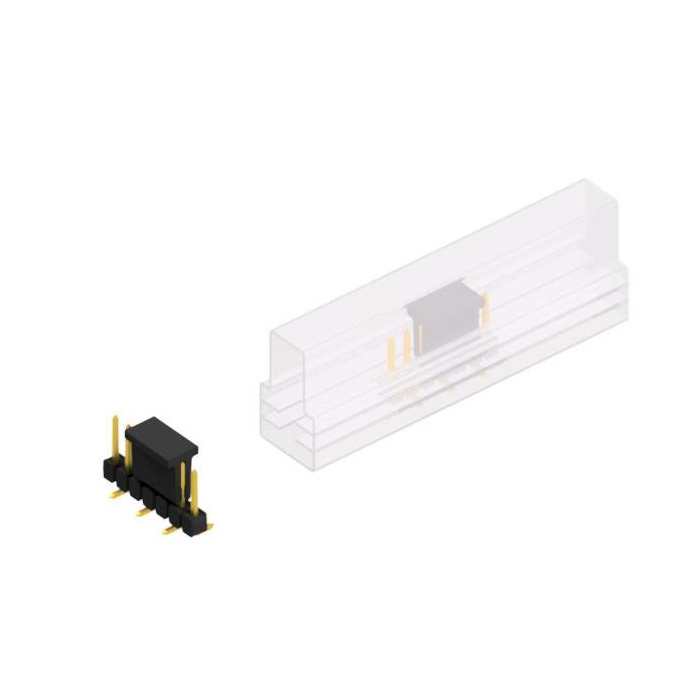

The SL 10 SMD 062 7 G is a surface mount male header connector manufactured by Fischer Elektronik. It features 7 positions with a 0.100 inch (2.54 mm) pitch and single-row configuration. The contacts are gold-plated, providing reliable electrical performance. Designed for PCB mounting, it operates within a temperature range of -40°C to +163°C. The connector utilizes a polyamide insulation material and square contact shapes, ensuring secure mating with compatible female headers.

Headers, Male Pins Feature Summary

• Surface mount design for automated PCB assembly
• Gold-plated contacts for enhanced conductivity
• Single-row male pin configuration
• Polyamide insulation for thermal stability

Headers, Male Pins Applications

• High-density electronic circuit boards
• Automated pick-and-place manufacturing processes
• Industrial control system interconnections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' confirms gold plating as per official datasheets. Ensure compatibility with mating connectors regarding row count and pitch. Confirm surface mount footprint dimensions match the target PCB layout. Check for availability in bar magazine or tape-and-reel packaging options if required for production volume.

Headers, Male Pins Selection Notes

Select this component when a low-profile, surface-mount male header is required for high-reliability applications. The gold plating offers superior corrosion resistance compared to tin variants. Consider the operating temperature range and insulation material properties for environmental suitability. Ensure the single-row format aligns with the board space constraints and mating interface requirements.

Headers, Male Pins Part Context

This part belongs to the SL 10 SMD series of rectangular connectors from Fischer Elektronik. The series is characterized by its compact surface mount form factor and standardized 2.54 mm pitch. It is designed for use in various electronic assemblies where reliable signal transmission is critical. The product line emphasizes durability and precise manufacturing tolerances for consistent performance.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 7-position count, 2.54 mm pitch, and surface mount style. Verify that alternative parts offer equivalent gold plating thickness and current ratings. Ensure the mating connector interface is compatible with the male pin configuration. Cross-reference manufacturer-specific mounting footprints to avoid PCB redesign.
