SL 10 SMD 062 9 S SM

Headers, Male Pins Overview

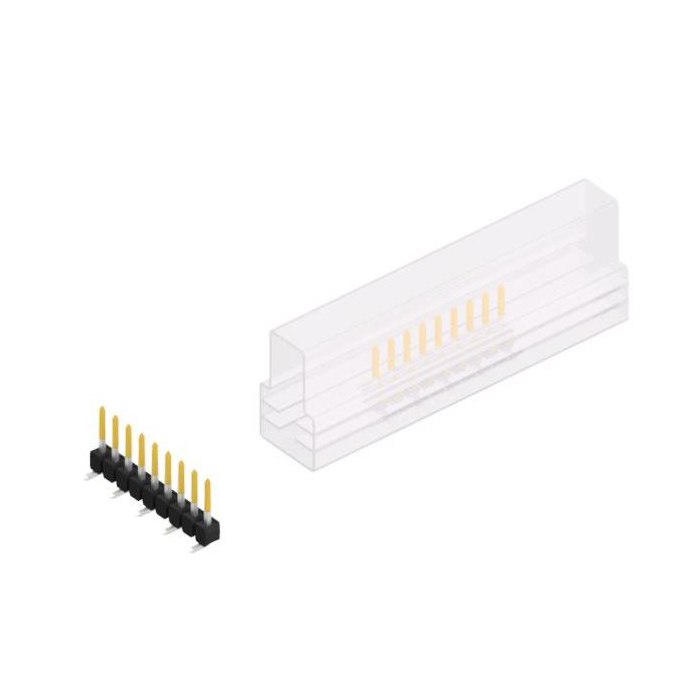

The SL 10 SMD 062 9 S SM is a surface-mount male pin header manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains 9 contacts arranged in a single row. The connector utilizes gold-plated contact surfaces with a thickness of 46 µm for reliable mating, while the termination pins are tin-plated. Designed for push-pull fastening, it operates within a temperature range of -40°C to +163°C and supports soldering at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Surface-mount design optimized for automated pick-and-place assembly processes
• Gold-plated contact surfaces ensure stable electrical performance during mating cycles
• Push-pull fastening mechanism provides secure mechanical retention on the PCB

Headers, Male Pins Applications

• Board-to-board interconnections requiring surface-mount technology
• Wire-to-board signal connections in compact electronic assemblies
• High-density circuit board layouts utilizing standard 2.54 mm spacing

Headers, Male Pins Procurement Notes

Verify that the ordering suffix 'SM' corresponds to the bar magazine packaging option as specified in the manufacturer documentation. Confirm the specific contact plating configuration matches the required application environment. Ensure the component designation aligns exactly with the Fischer Elektronik part number to avoid substitution errors regarding contact geometry or insulation height.

Headers, Male Pins Selection Notes

Select this component when surface-mount mounting is required for a 9-position interface. The 2.54 mm pitch is suitable for standard through-hole compatible mating connectors. Consider the thermal rating of 260°C for 10 seconds if reflow soldering processes are utilized. Verify that the single-row configuration fits the available PCB footprint constraints.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 10 SMD series, which comprises precision-engineered male headers designed specifically for surface-mount device applications. The series offers various contact counts and packaging options to accommodate different density requirements. These components are characterized by their compact form factor and robust mechanical fastening capabilities.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Direct replacement requires matching the exact pitch, contact count, and mounting style. Verify compatibility with mating connectors before substituting with generic equivalents.
