SL 10 SMD 078 6 S

Headers, Male Pins Overview

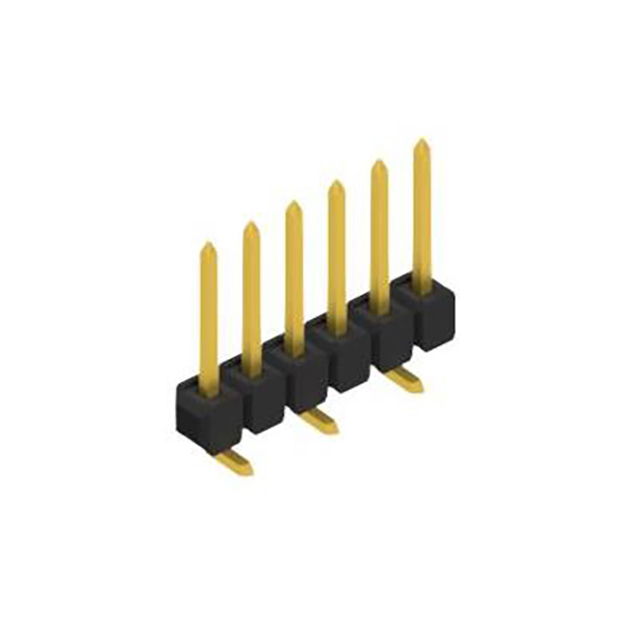

The SL 10 SMD 078 6 S is a surface mount board connector manufactured by Fischer Elektronik. It features six male contacts arranged in a single row with a 2.54 mm pitch. The component utilizes straight terminals designed for direct PCB mounting. Contact surfaces are gold-plated to ensure reliable electrical performance and corrosion resistance. The housing is constructed from polyamide (PA46) reinforced with glass fiber, providing structural stability and thermal endurance across an operating temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Surface mount design with straight male pins for direct PCB integration
• Gold-plated contact surfaces ensuring high conductivity and durability
• Glass-fiber reinforced polyamide insulation for thermal stability

Headers, Male Pins Applications

• High-density electronic circuit board interconnections
• Automotive electronics assembly requiring robust surface mounting
• Industrial control systems utilizing standard 2.54 mm spacing

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against official Fischer Elektronik documentation to confirm that it denotes the required gold plating variant rather than tin or other finishes. Ensure the selected part number matches the exact pin count and row configuration required for the target application to avoid compatibility issues during assembly.

Headers, Male Pins Selection Notes

Select this component when a low-profile surface mount header is required for signal transmission. The gold plating offers superior oxidation resistance compared to tin variants, making it suitable for environments where long-term reliability is critical. Confirm that the PCB footprint aligns with the specified dimensions for proper solder joint formation.

Headers, Male Pins Part Context

This connector belongs to the SL 10 SMD series, which provides standardized surface mount solutions for various pin counts. The series maintains consistent mechanical and electrical characteristics across different configurations, allowing for modular design approaches in electronic assemblies while ensuring uniform mounting profiles.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same Fischer Elektronik SL 10 SMD family include variants with different pin counts such as SL 10 SMD 040, SL 10 SMD 052, SL 10 SMD 062, SL 10 SMD 104, and SL 10 SMD 130. Verify that the replacement part matches the required contact quantity and plating specification.
