SL 12 SMD 058 9 Z B SM

Headers, Male Pins Overview

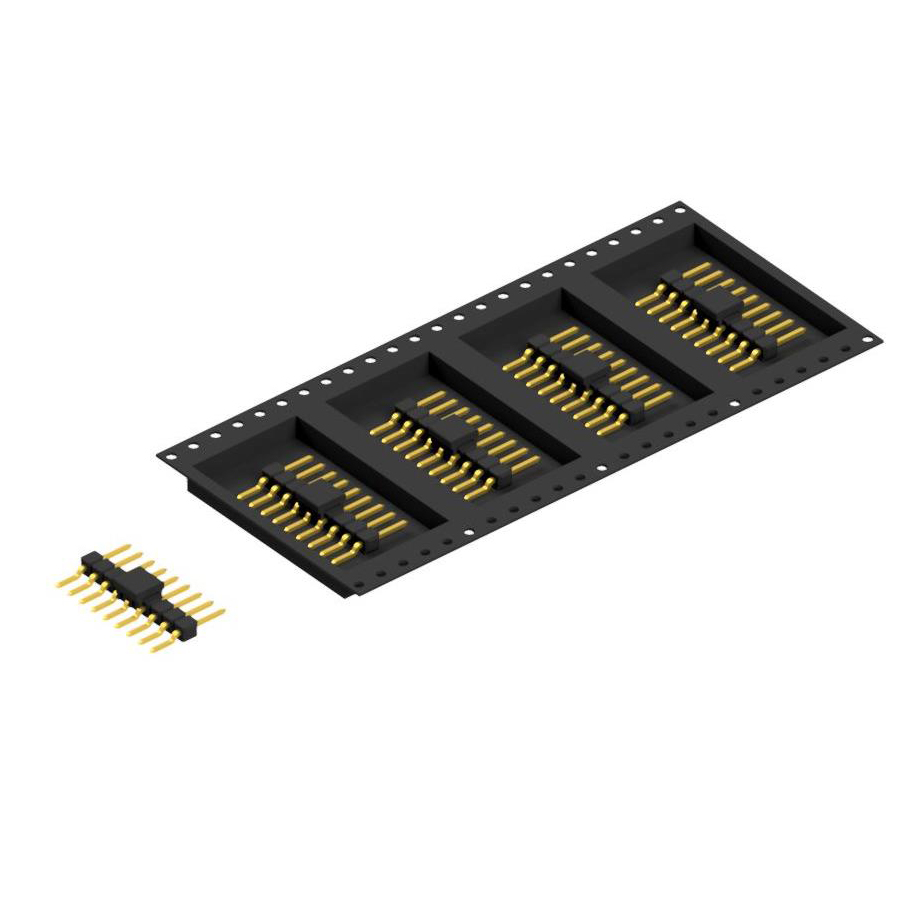

The SL 12 SMD 058 9 Z B SM is a surface-mount male pin header manufactured by Fischer Elektronik. It features a single row with 9 positions and a standard 2.54 mm (0.100 inch) pitch. The connector is designed for PCB-to-board or wire-to-board applications, utilizing a compact form factor suitable for automated pick-and-place assembly processes.

Headers, Male Pins Feature Summary

• Surface-mount construction optimized for automated assembly
• Single-row male pin configuration for reliable electrical connectivity
• Standard 2.54 mm pitch ensuring compatibility with common mating connectors

Headers, Male Pins Applications

• PCB-to-board interconnections
• Wire-to-board connections
• General electronic device assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Fischer Elektronik datasheet to confirm plating specifications and packaging format. Ensure the component matches the required current rating and voltage specifications for the target application before procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, surface-mount male header is required for high-density board layouts. The 2.54 mm pitch offers broad compatibility with existing connector ecosystems, while the SMD design facilitates efficient manufacturing workflows.

Headers, Male Pins Part Context

This part belongs to the SL 12 SMD series of pin headers from Fischer Elektronik. The series provides various pole counts and configurations tailored for modern electronics manufacturing, emphasizing reliability and ease of integration into printed circuit board assemblies.

Headers, Male Pins Replacement Considerations

Consult the manufacturer's cross-reference documentation for verified substitute part numbers. Generic equivalents may not match the precise mechanical tolerances or plating requirements specified for this component.
