SL 3 182 23 Z

Headers, Male Pins Overview

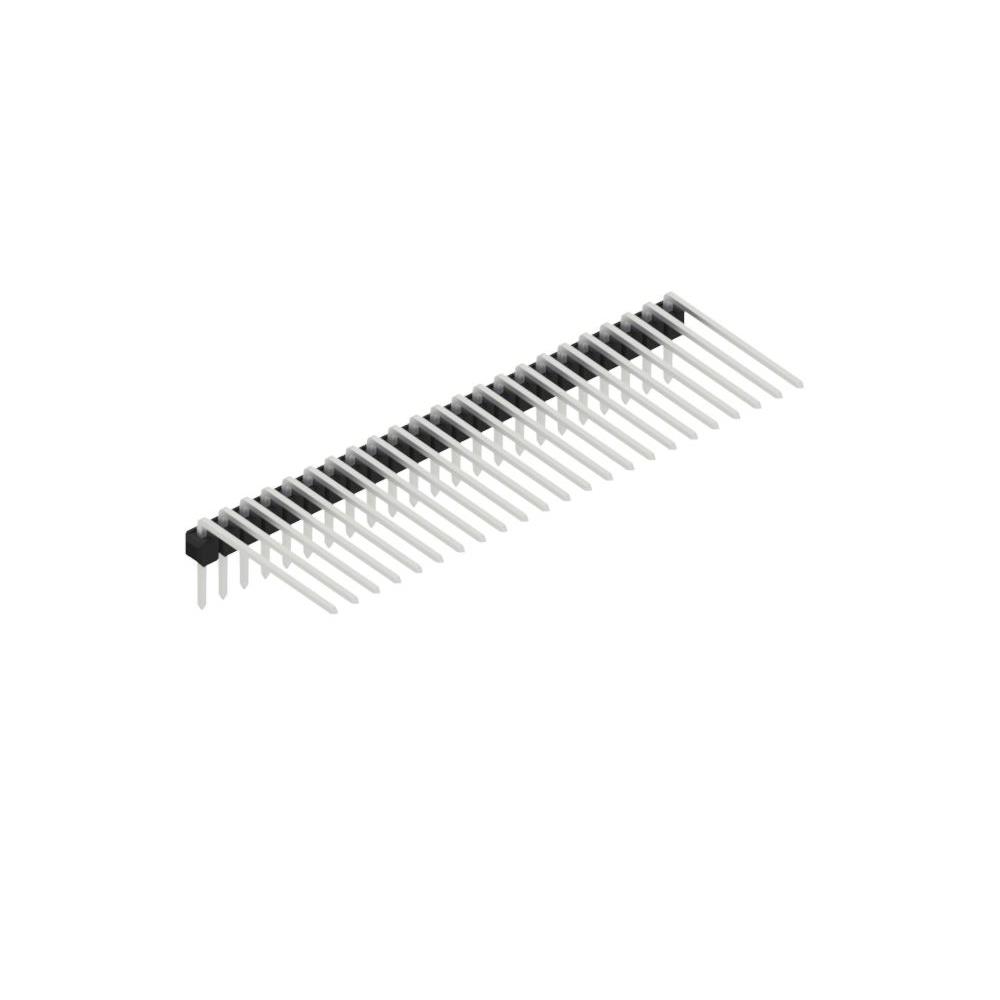

The SL 3 182 23 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.100-inch (2.54 mm) pitch and contains 23 positions. Designed for through-hole PCB mounting, the contacts are made from a CuSn-alloy with a tin-plated surface finish. The insulating body utilizes PA 4.6 GF material, rated for operation between -40°C and +163°C, with a UL 94 V-0 flammability classification. The unit supports a nominal voltage of 250 V AC and withstands a test voltage of 2000 V.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board interconnections
• Through-hole termination method ensuring secure PCB attachment
• Tin-plated contact surfaces for reliable conductivity and corrosion resistance
• High-temperature resistant PA 4.6 GF insulating body

Headers, Male Pins Applications

• General electronic equipment internal wiring
• Industrial control system signal transmission
• Test and measurement instrument interfaces

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm contact count and plating specifications. Ensure compatibility with mating socket dimensions and PCB hole patterns prior to procurement. Check for any recent updates in material composition or regulatory compliance status directly from the manufacturer's current datasheets.

Headers, Male Pins Selection Notes

Select this component when a 23-position, 2.54 mm pitch male header is required for through-hole assembly. Consider the thermal limits and voltage ratings against the application environment. Verify that the tin-plated contacts meet the electrical requirements without necessitating gold plating for low-signal applications.

Headers, Male Pins Part Context

This connector belongs to the SL 3 182 series, which offers customizable total lengths by adjusting the insulator section. The series provides various contact counts while maintaining consistent pitch and mounting characteristics. It serves as a standard interconnection solution within Fischer Elektronik's rectangular connector portfolio.
