SLV W 2 130 14 Z

Headers, Male Pins Overview

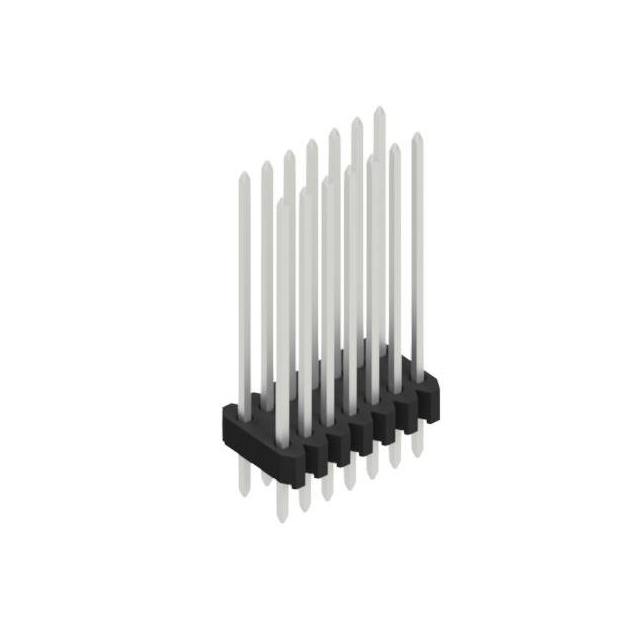

The SLV W 2 130 14 Z is a male pin header from Fischer Elektronik, designed for through-hole PCB mounting. It features a 1.27 mm pitch and two rows with 14 contacts. The connector utilizes copper zinc alloy pins with tin plating, offering a mating contact finish thickness of 4.00 µm. Insulation is provided by PA 4.6 material, ensuring compliance with RoHS standards.

Headers, Male Pins Feature Summary

• Dual-row configuration with 1.27 mm pitch for compact board-to-board connectivity
• Tin-plated copper zinc alloy contacts ensure reliable electrical performance
• PA 4.6 insulation material provides structural stability and thermal resistance

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic circuit assembly

Headers, Male Pins Procurement Notes

Verify the specific part number SLV W 2 130 14 Z against official Fischer Elektronik documentation to confirm pin count, pitch, and row configuration. Ensure compatibility with mating female headers such as the BLM series. Check for RoHS compliance requirements relevant to your manufacturing process before procurement.

Headers, Male Pins Selection Notes

Select this component when a 14-position, dual-row male header with 1.27 mm pitch is required. The tin-plated contacts suit standard environmental conditions. Verify that the PA 4.6 insulation rating meets the voltage and temperature specifications of the target application environment.

Headers, Male Pins Part Context

This part belongs to the SLV W series of pin headers from Fischer Elektronik. These connectors are engineered for high-density PCB applications requiring robust mechanical retention and consistent electrical contact. The series supports various pole counts while maintaining standardized dimensions.

Headers, Male Pins Replacement Considerations

No public substitute part numbers are confirmed in available documentation. Direct replacement requires matching the 1.27 mm pitch, 2x14 configuration, and through-hole mounting style.
