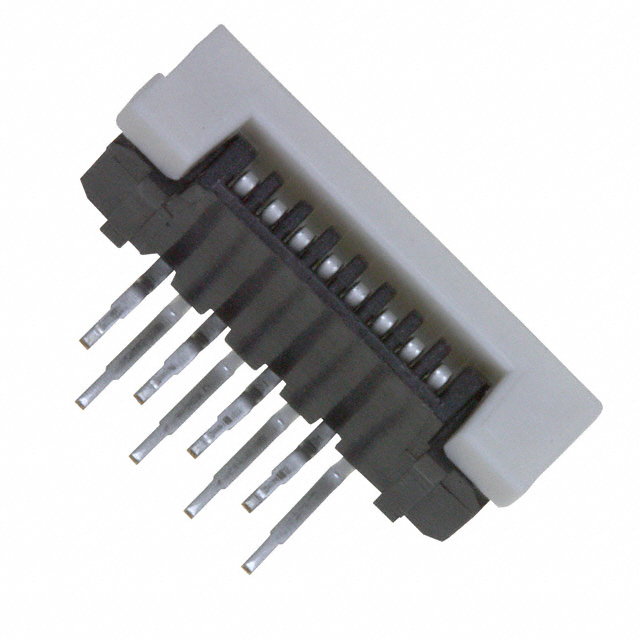

SLW8R-5C7LF

SLW8R-5C7LF is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN CIC BOTTOM 8POS 1MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for SLW8R-5C7LF

• Description：CONN CIC BOTTOM 8POS 1MM R/A
• Series：SLW-R
• Mfr：Amphenol ICC (FCI)
• Package：Tray
• Flat Flex Type：CIC
• Mounting Type：Through Hole, Right Angle
• Connector/Contact Type：Contacts, Bottom
• Number of Positions：8
• Pitch：0.039" (1.00mm)
• Termination：Kinked Pin
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.157" (4.00mm)
• Locking Feature：Slide Lock
• Cable End Type：Tapered
• Contact Material：Phosphor Bronze
• Contact Finish：Tin
• Housing Material：Polyamide (PA), Nylon, Glass Filled
• Actuator Material：Polyamide (PA), Nylon, Glass Filled
• Features：Zero Insertion Force (ZIF)
• Voltage Rating：100V
• Operating Temperature：-55°C ~ 85°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for SLW8R-5C7LF
