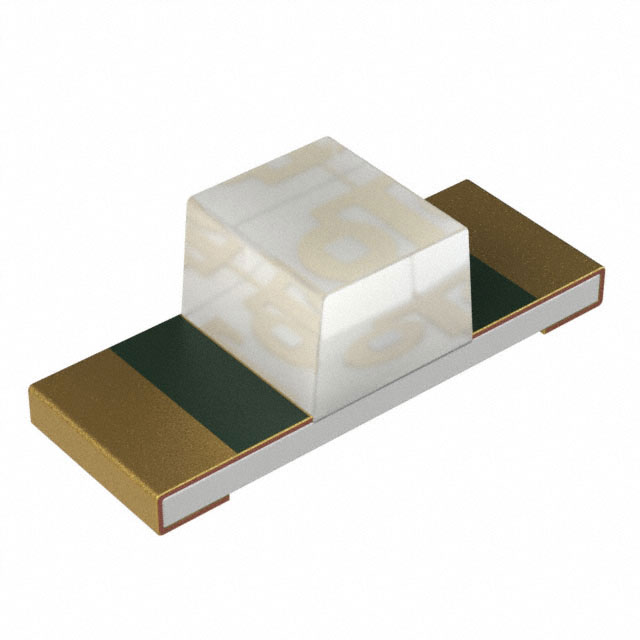

SML813BC8TT86

$0.18

Description：LED BLUE CLEAR 3412 SMD
Series：SML-81
Mfr：Rohm Semiconductor
Package：Tape & Reel (TR)

SKU:6728d5dbd7f5 Category: LED Indication - Discrete Brand: Rohm Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SML813BC8TT86 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Rohm Semiconductor. Its product description is LED BLUE CLEAR 3412 SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for SML813BC8TT86

Description：LED BLUE CLEAR 3412 SMD
Series：SML-81
Mfr：Rohm Semiconductor
Package：Tape & Reel (TR)
Color：Blue
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：56mcd
Lens Style：Rectangle with Flat Top
Lens Size：1.20mm x 1.25mm
Voltage - Forward (Vf) (Typ)：3.3V
Current - Test：20mA
Viewing Angle：-
Mounting Type：Surface Mount, Bottom Entry
Wavelength - Dominant：470nm
Wavelength - Peak：-
Features：-
Package / Case：1305 (3412 Metric)
Supplier Device Package：3412(1305)
Size / Dimension：3.40mm L x 1.25mm W
Height (Max)：1.15mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for SML813BC8TT86

SML813BC8TT86

LED Indication - Discrete Overview

The SML813BC8TT86 is a single-color blue LED manufactured by ROHM Semiconductor, belonging to the SML-81 series. It utilizes an InGaN chip structure and features a reverse mount capability, allowing installation on the back of printed circuit boards. The component operates within a temperature range of -30°C to +85°C and supports a forward current of 20 mA with a typical forward voltage of 3.2 V. Designed for surface mount applications, it offers high luminous intensity suitable for industrial and home appliance indicator lighting.

LED Indication - Discrete Feature Summary

Reverse mount design enables flexible PCB layout options
High brightness output using InGaN technology
Standardized package dimensions for automated assembly

LED Indication - Discrete Applications

Home appliance status indicators
Industrial equipment control panels
General purpose electronic device signaling

LED Indication - Discrete Procurement Notes

Verify the exact ordering suffix against the manufacturer's latest documentation to ensure correct binning and packaging specifications. Confirm that the reverse mount variant aligns with your mechanical constraints. Check for any recent lifecycle updates or recommended replacement parts before finalizing procurement plans.

LED Indication - Discrete Selection Notes

Select this component when space-constrained designs require LEDs mounted on the rear side of the substrate. Ensure the driving circuit accommodates the specified forward voltage and current limits. Consider thermal management requirements given the power dissipation characteristics during continuous operation.

LED Indication - Discrete Part Context

This part belongs to the SML-81 series of surface mount LEDs from ROHM Semiconductor. The series is characterized by its compact footprint and robust construction for reliable performance in consumer and industrial electronics. The specific model denotes a blue emission variant optimized for visibility in standard ambient lighting conditions.
