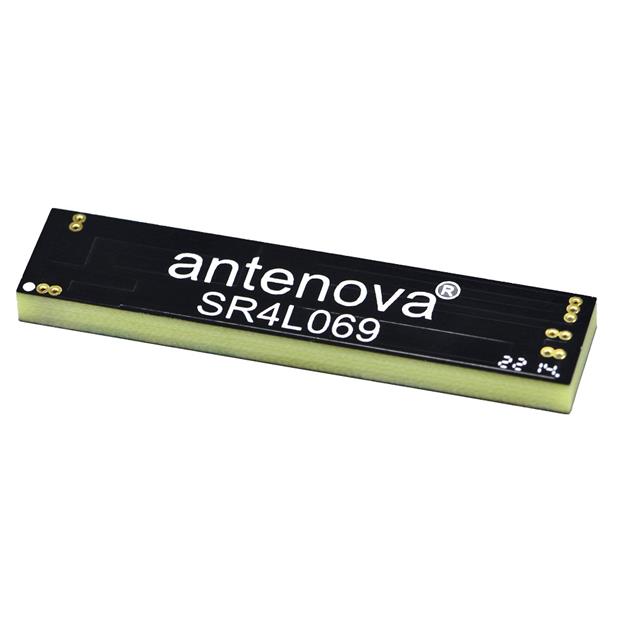

SR4L069

SR4L069 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Antenova. Its product description is ALLANI SMD 5G CELLULAR ANTENNA. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for SR4L069

• Description：ALLANI SMD 5G CELLULAR ANTENNA
• Series：lamiiANT®
• Mfr：Antenova
• Package：Tape & Reel (TR),Cut Tape (CT)
• RF Family/Standard：Cellular
• Frequency Group：Wide Band
• Frequency (Center/Band)：720.5MHz, 892MHz, 1.94GHz, 2.35GHz, 2.595GHz, 3.55GHz
• Frequency Range：617MHz ~ 698MHz, 824MHz ~ 803MHz, 1.71GHz ~ 894MHz, 2.3GHz ~ 1.518GHz, 2.5GHz ~ 1.661GHz, 3.3GHz ~ 2.2GHz,
• Antenna Type：Flat Bar
• Number of Bands：6
• VSWR：2.2, 2.3, 2.4, 3.3, 3.6
• Return Loss：-8.5dB, -8dB, -7.7dB, -5.5dB, -5dB
• Gain：-0.2dBi, 1.6dBi, 4.1dBi, 3.4dBi, 5.1dBi, 5.4dBi
• Features：-
• Termination：-
• Ingress Protection：-
• Grade：-
• Qualification：-
• Mounting Type：Surface Mount
• Height (Max)：0.130" (3.30mm)
• Applications：4G, 5G, DCS, GSM, LTE, WCDMA
• Power - Max：-

Antennas RF datasheet and documents for SR4L069
