SRP1770TA-5R6M

Fixed Inductors Overview

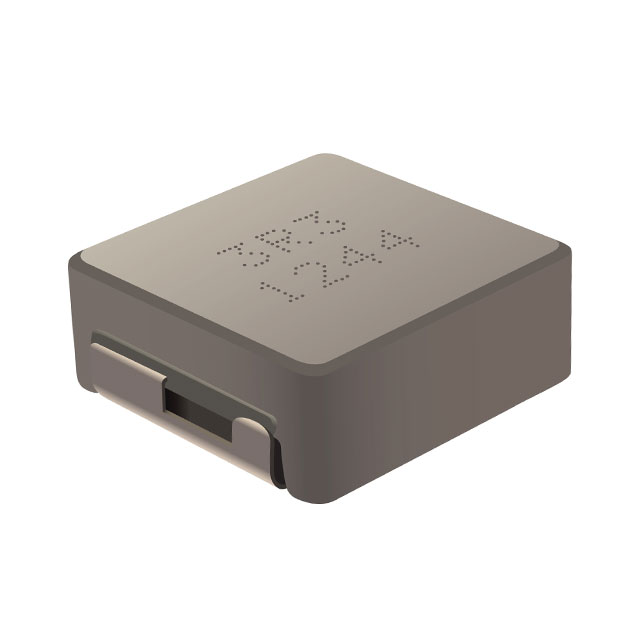

The Bourns SRP1770TA-5R6M is a shielded surface-mount power inductor from the SRP1770TA series, featuring a wirewound construction on a carbonyl powder core. It provides an inductance of 5.6 µH with a tolerance of ±20%. The component supports a maximum DC current of 21 A and a saturation current of 40 A, with a maximum DC resistance of 7.05 mOhms. Designed for automotive reliability, it holds AEC-Q200 qualification. The operating temperature range spans from -40°C to +150°C, ensuring stability in demanding thermal environments.

Fixed Inductors Feature Summary

• Shielded construction minimizes electromagnetic interference and magnetic flux leakage.
• High saturation current capability supports robust performance under heavy load conditions.
• AEC-Q200 qualification ensures compliance with automotive-grade quality standards.

Fixed Inductors Applications

• Automotive power supply circuits
• DC-DC converter output filtering
• On-board charger systems

Fixed Inductors Procurement Notes

Verify the specific suffix '5R6M' corresponds to the required 5.6 µH value during procurement. Confirm that the package dimensions align with the target PCB footprint. Ensure the supplier provides traceability documentation consistent with automotive industry requirements. Cross-reference the manufacturer datasheet for any updates regarding RoHS compliance or material declarations before finalizing orders.

Fixed Inductors Selection Notes

Select this component when high current handling is critical due to its 40 A saturation rating. The shielded design is suitable for space-constrained applications requiring low EMI. Consider the 7.05 mOhm DCR for efficiency calculations in low-voltage, high-current paths. Verify thermal management capabilities given the wide operating temperature range up to 150°C.

Fixed Inductors Part Context

This part belongs to the SRP1770TA series of shielded power inductors by Bourns. The series is characterized by high saturation currents and compact SMD packaging. It is engineered specifically for automotive electronics, offering reliability under harsh environmental conditions. The SRP1770TA line complements other Bourns magnetic products designed for power delivery networks.

Fixed Inductors Replacement Considerations

Check for direct substitutes within the SRP1770TA series with different inductance values if current ratings differ. Evaluate other shielded SMD power inductors from Bourns with similar saturation characteristics. Ensure any replacement maintains AEC-Q200 certification if automotive application is required.
