SSL-LX3044ID

LED Indication - Discrete Overview

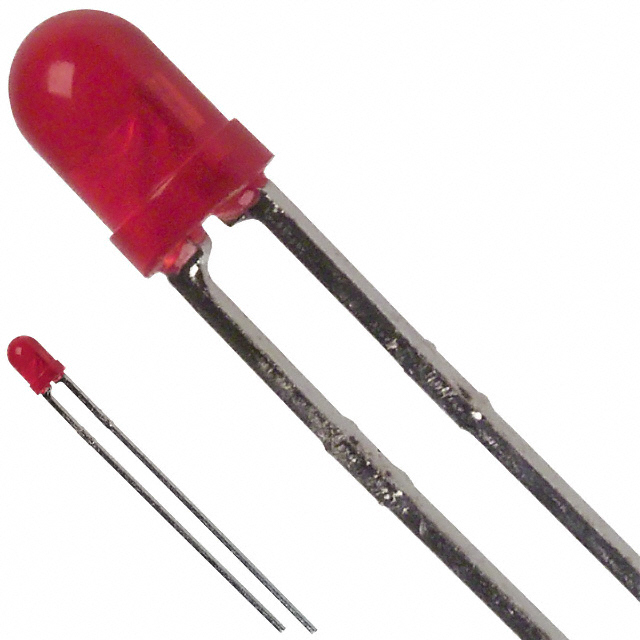

The SSL-LX3044ID is a single-color red LED indicator from Lumex Opto/Components Inc., designed for through-hole mounting. It features a T-1 (3mm) radial package with a diffused lens and a dome shape. The component emits light at a peak wavelength of 635nm, providing a luminous intensity of 30mcd. It operates with a typical forward voltage of 2V at a test current of 20mA. The device has a viewing angle of 60 degrees and a maximum height of 4.60mm. It complies with RoHS3 standards and is classified under ECCN EAR99.

LED Indication - Discrete Feature Summary

• Features a diffused red lens with a dome shape to provide wide-angle visibility.
• Utilizes a standard T-1 (3mm) radial leaded package for reliable through-hole integration.
• Delivers consistent optical performance with a 60-degree viewing angle.

LED Indication - Discrete Applications

• General purpose status indication on electronic equipment panels
• Power supply activity monitoring
• Control board signal visualization

LED Indication - Discrete Procurement Notes

Verify the specific suffix ID against the manufacturer datasheet to confirm lens diffusion and electrical characteristics. Ensure compatibility with existing PCB footprints for T-1 radial components. Check for RoHS3 compliance requirements if operating in regulated regions. Confirm availability as distribution data may vary by region.

LED Indication - Discrete Selection Notes

Select this component when a standard red indicator with moderate brightness is required for through-hole assemblies. The 60-degree viewing angle suits applications where direct line-of-sight is not strictly necessary. Compare forward voltage and current ratings against circuit design limits to ensure proper driver configuration without additional series resistance adjustments.

LED Indication - Discrete Part Context

This part belongs to the SSL-LX3044 family of single-color LEDs manufactured by Lumex. The family includes variants with different lens colors, wavelengths, and intensities. The SSL-LX3044ID specifically denotes the red diffused version within this standardized T-1 form factor lineup.

LED Indication - Discrete Replacement Considerations

HLMP-1601 and HLMP-K101 are listed as similar alternatives by distributors. Verify pinout, forward voltage, and luminous intensity matches before substitution.
