SSL-LX3052ID

LED Indication - Discrete Overview

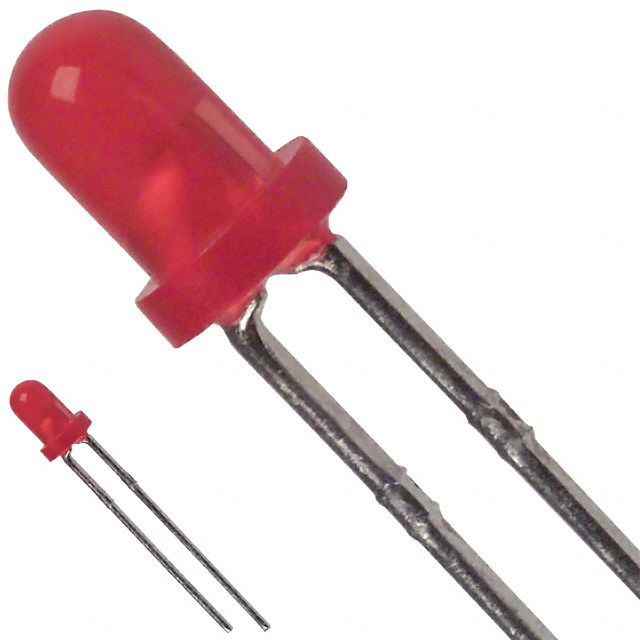

The SSL-LX3052ID is a single-color red LED indicator manufactured by Lumex Opto/Components Inc. It utilizes a T-1 (3 mm) radial through-hole package with a diffused dome lens. The component emits light at a peak wavelength of 635 nm and provides an optical intensity of 30 mcd. It operates with a typical forward voltage of 2.1 V and a test current of 20 mA. The device features a viewing angle of 60 degrees and has a maximum height of 5.25 mm. It is compliant with RoHS3 standards and holds an MSL rating of 1.

LED Indication - Discrete Feature Summary

• Radial through-hole mounting configuration in a T-1 3 mm package
• Diffused dome lens design for wide 60-degree visibility
• Red emission at 635 nm peak wavelength
• RoHS3 compliant construction

LED Indication - Discrete Applications

• Panel status indication
• Power supply signaling
• Equipment operational feedback

LED Indication - Discrete Procurement Notes

Verify the specific manufacturer part number against official Lumex documentation to confirm electrical parameters such as forward voltage and luminous intensity. Check current availability status, as components may be subject to obsolescence or supply chain constraints. Ensure that the selected variant matches the required package dimensions and lead configuration for the intended PCB layout.

LED Indication - Discrete Selection Notes

Select this component when a standard 3 mm red indicator is required for through-hole assembly. Consider the 2.1 V forward voltage drop for circuit design calculations. The diffused lens is suitable for applications requiring broad visual detection rather than focused beam projection. Verify mechanical clearance for the 5.25 mm maximum height constraint.

LED Indication - Discrete Part Context

This component belongs to the Lumex SSL-LX3052 series of single-color LEDs. The series offers various lens colors and transparency options within the T-1 form factor. The SSL-LX3052ID specifically denotes the red diffused variant. It serves as a discrete indicator element within larger electronic assemblies where visual status confirmation is necessary.

LED Indication - Discrete Replacement Considerations

HLMP-1601

LED Indication - Discrete FAQ

What is the peak wavelength of the SSL-LX3052ID?

The peak wavelength is 635 nm.

Does the SSL-LX3052ID have a RoHS3 certification?

Yes, the component is RoHS3 compliant.
