SSL-LX5093BID

LED Indication - Discrete Overview

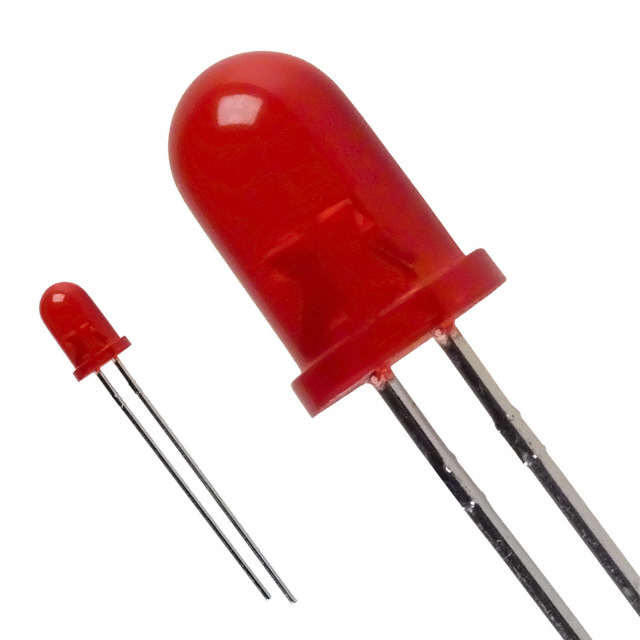

The SSL-LX5093BID is a standard through-hole LED manufactured by Lumex. It features a red emission with a peak wavelength of 625nm and utilizes a diffused lens configuration. The component is housed in a T-5mm (T-1 3/4) package, designed for radial mounting on printed circuit boards. This single-color indicator light provides visual status signaling in electronic assemblies.

LED Indication - Discrete Feature Summary

• Through-hole radial mounting design
• Red color emission at 625nm
• Diffused lens for wide viewing angle

LED Indication - Discrete Applications

• Electronic equipment status indication
• Panel mount power indicators
• Control board signal visualization

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version to confirm electrical parameters such as forward voltage and current ratings. Ensure the ordering suffix matches the required lens type and wavelength specifications. Confirm RoHS compliance status and lead times directly with authorized distributors or the manufacturer before finalizing procurement plans.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a standard red visual indicator with a diffused output. Consider the T-5mm form factor for compatibility with existing PCB layouts. Evaluate thermal management requirements based on the intended operating current and ambient temperature conditions.

LED Indication - Discrete Part Context

This part belongs to the Lumex SSL-LX5093 series of standard LEDs. The series offers various colors and lens configurations within the T-5mm package. The SSL-LX5093BID specifically denotes the red, diffused variant, providing consistent performance for general-purpose indication tasks across industrial and consumer electronics.

LED Indication - Discrete Replacement Considerations

Consult official Lumex documentation for verified substitute part numbers. Cross-reference pinout compatibility and mechanical dimensions when evaluating alternative components from other manufacturers.
