STOTG04ESQTR

Drivers, Receivers, Transceivers Overview

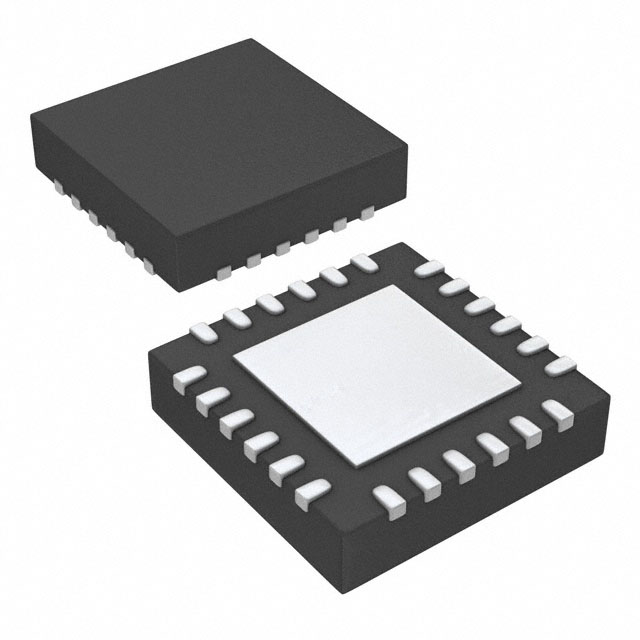

The STOTG04ESQTR is a line transceiver manufactured by STMicroelectronics, designed for robust signal transmission in industrial environments. It operates within an extended temperature range of -40°C to +85°C, ensuring reliability under varying thermal conditions. The device supports dual voltage domains: a primary supply ranging from 1.6 V to 3.6 V with a nominal rating of 1.8 V, and a secondary domain spanning 2.7 V to 5.5 V. Housed in a compact 4x4 mm QFN-24 package with a 0.5 mm pitch, it features lead-free construction compliant with RoHS standards. This component integrates a single functional unit optimized for high-speed data communication interfaces.

Drivers, Receivers, Transceivers Feature Summary

• Galvanic isolation capability for noise immunity
• Dual-voltage operation supporting mixed logic levels
• Industrial-grade thermal stability

Drivers, Receivers, Transceivers Applications

• Industrial automation bus systems
• Factory control network interfaces
• Smart metering communication modules

Drivers, Receivers, Transceivers Procurement Notes

Verify the specific ordering suffix against the official datasheet to confirm package type and tape-and-reel specifications. Ensure compatibility with existing PCB footprint dimensions and thermal pad requirements. Confirm that the selected variant meets the required operating temperature range for the target application environment before finalizing procurement.

Drivers, Receivers, Transceivers Selection Notes

Select this component when designing systems requiring isolated line driving with low power consumption. Evaluate the voltage level translation capabilities between the 1.8 V logic domain and higher voltage I/O lines. Consider the QFN-24 package constraints for thermal dissipation and assembly processes during the layout phase.

Drivers, Receivers, Transceivers Part Context

This part belongs to the ST line transceiver family, which provides isolated communication solutions for harsh electromagnetic environments. It complements other interface components by offering reliable data transfer across galvanic barriers, essential for protecting sensitive microcontroller units from high-voltage transients on external buses.

Drivers, Receivers, Transceivers Replacement Considerations

Consult the official STMicroelectronics replacement guide for pin-compatible alternatives. Verify electrical parameters such as propagation delay and isolation voltage ratings against potential substitute parts to ensure system integrity without redesign.
