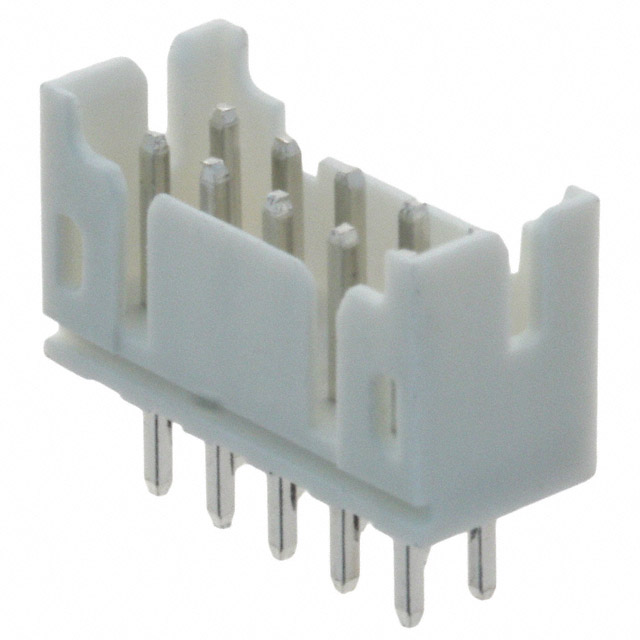

SWR204-NRTN-D05-ST-GA

Headers, Male Pins Overview

The SWR204-NRTN-D05-ST-GA is a board-to-board or board-to-wire connector header manufactured by Sullins Connector Solutions. It features a 10-position configuration arranged in two rows, with a contact pitch of 0.079 inches (2.00 mm). The component utilizes a vertical through-hole solder termination method and is designed for a maximum voltage rating of 50V. The housing is shrouded with four walls to ensure proper alignment and protection during mating.

Headers, Male Pins Feature Summary

• Vertical through-hole mounting design for secure PCB attachment
• Shrouded four-wall housing structure for precise alignment
• Two-row male contact configuration with standard 2mm pitch

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Board-to-cable or wire harness connections
• General electronic equipment internal wiring

Headers, Male Pins Procurement Notes

Verify the specific pin count and row configuration against the schematic requirements. Confirm that the vertical orientation and shrouded style match the assembly constraints. Ensure the solder termination type is compatible with the manufacturing process. Check RoHS compliance status if required by project specifications.

Headers, Male Pins Selection Notes

Select this part when a low-profile, vertically oriented header is needed for 10-pin connections. The 2mm pitch allows for dense circuit layouts. Consider the shrouded design for applications requiring guided insertion. Evaluate the 50V rating against system electrical requirements before implementation.

Headers, Male Pins Part Context

This component belongs to the SWR204 series of rectangular connectors from Sullins Connector Solutions. The series offers various position counts and termination styles. This specific model represents a standard vertical header option within the product line, distinguished by its 10-position capacity and through-hole solder compatibility.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other SWR204 series headers with matching 10-position and 2-row configurations. Verify that alternative parts maintain the same 0.079-inch pitch and vertical mounting orientation. Ensure the replacement also features a shrouded housing for equivalent alignment performance.
