SX3M10.000F20F30TJN

Oscillators Overview

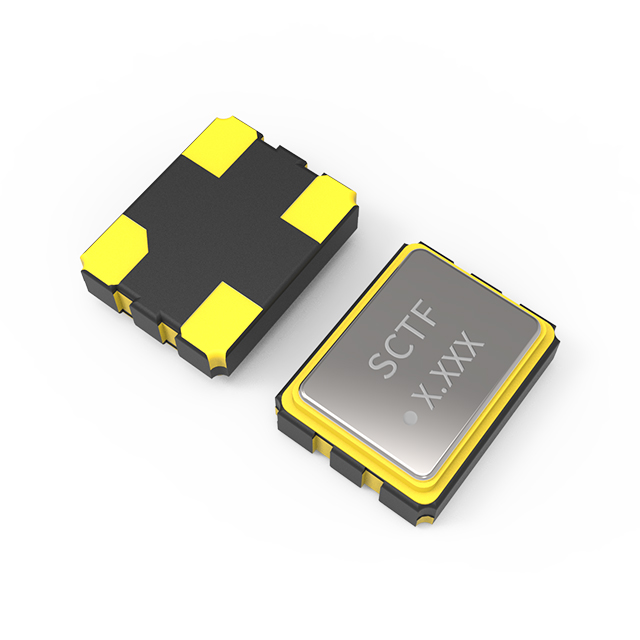

The SX3M10.000F20F30TJN is a CMOS crystal oscillator manufactured by Shenzhen SCTF Electronics, operating at a nominal frequency of 10 MHz. It utilizes a standard XO output configuration and supports an enable/disable control function via a 1V logic level. The component is housed in a compact 4-SMD, no-lead package, designed for surface-mount assembly. This oscillator provides stable clock signals suitable for digital circuit timing applications requiring precise frequency generation.

Oscillators Feature Summary

• CMOS output interface with standard XO configuration
• Integrated enable/disable control functionality
• Compact 4-SMD no-lead surface mount package

Oscillators Applications

• Embedded system clock sources
• Communication module timing
• Digital circuit synchronization

Oscillators Procurement Notes

Verify the specific suffix 'F20F30TJN' against official datasheets to confirm pinout compatibility and electrical tolerances. Ensure the supply voltage matches the 1V enable requirement. Cross-reference the manufacturer part number with authorized distributors to avoid counterfeit components. Confirm lead times and availability directly with suppliers prior to ordering.

Oscillators Selection Notes

Select this model when a 10 MHz CMOS clock signal is required in a small form factor. Consider the 4-SMD package size for PCB space constraints. Verify that the operating temperature range meets application requirements. Compare performance metrics such as phase noise and stability against alternative oscillators if high precision is critical.

Oscillators Part Context

This component belongs to the SX3M series of surface-mount crystal oscillators from Shenzhen SCTF Electronics. The series offers various frequencies and packages to support diverse electronic design needs. The SX3M10.000F20F30TJN specifically addresses applications needing a 10 MHz reference clock with low profile packaging.

Oscillators Replacement Considerations

Check for direct substitutes with identical pinouts and electrical specifications. Verify frequency accuracy and package dimensions before swapping. Consult manufacturer cross-reference lists for compatible alternatives.
