SX3V22.5792B10080F20TNNS

Oscillators Overview

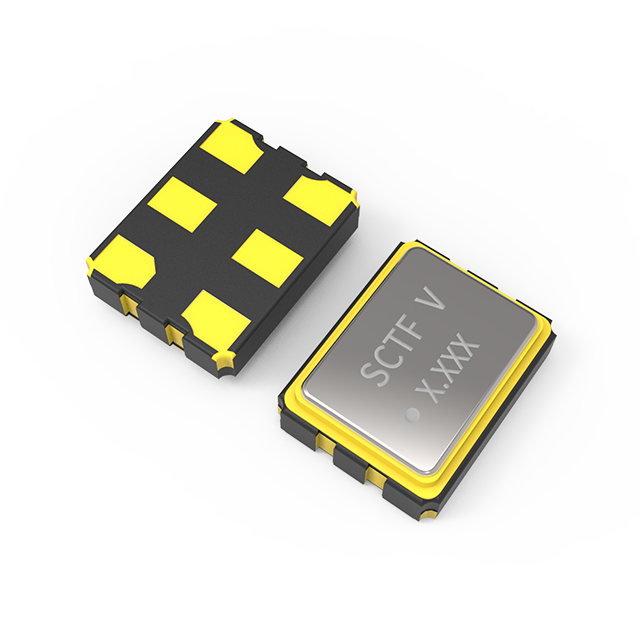

The SX3V22.5792B10080F20TNNS is a Voltage Controlled Crystal Oscillator (VCXO) manufactured by Shenzhen SCTF Electronics. It operates at a nominal frequency of 22.5792 MHz and utilizes CMOS output technology. The device features a 3.3V enable/disable control function, allowing for power management in active circuits. It is housed in a compact 6-SMD, No Lead package, designed for surface-mount assembly on printed circuit boards.

Oscillators Feature Summary

• Voltage controlled crystal oscillator architecture
• CMOS output signal generation
• Integrated 3.3V enable and disable control logic

Oscillators Applications

• Electronic clock signal distribution systems
• Data communication interface timing sources
• Embedded system synchronization circuits

Oscillators Procurement Notes

Verify the complete part number against official manufacturer documentation to ensure accuracy. Confirm that the specific suffixes match the required frequency, package type, and enable/disable functionality. Cross-reference with authorized distributors to validate component authenticity and sourcing channels before finalizing procurement orders.

Oscillators Selection Notes

Select this component when a precise 22.5792 MHz reference is required with voltage control capabilities. Ensure the design supports the 3.3V logic levels for the enable pin. Verify that the PCB layout accommodates the 6-SMD no-lead package dimensions and thermal requirements specified in the datasheet.

Oscillators Part Context

This VCXO belongs to the series of precision oscillators produced by Shenzhen SCTF Electronics. These components are engineered to provide stable frequency references for digital electronics. The specific model integrates control features to allow dynamic adjustment or power gating within the host application circuitry.

Oscillators Replacement Considerations

Consult official substitution lists from Shenzhen SCTF Electronics for verified compatible alternatives. Ensure any replacement matches the exact frequency, package outline, and electrical characteristics.
