SX5A8.000F2010F30G

Crystals Overview

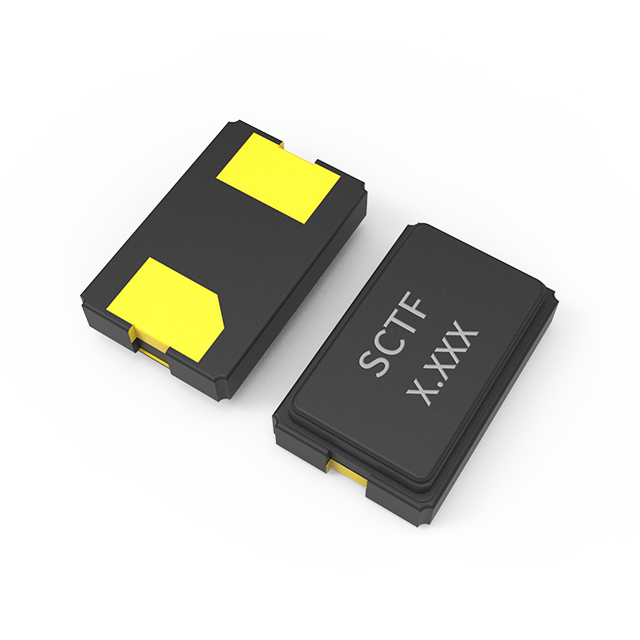

The SX5A8.000F2010F30G is a surface-mount AT-cut quartz crystal resonator manufactured by Shenzhen SCTF Electronics. It operates at a fundamental frequency of 8.000 MHz with a load capacitance of 20 pF and a frequency tolerance of ±10 ppm. The component utilizes a two-terminal SMD package, specifically the SMD5032 form factor, designed for reliable performance in compact electronic circuits.

Crystals Feature Summary

• AT-cut quartz construction ensures high stability and low aging rates
• Surface-mount design facilitates automated assembly processes
• Optimized for standard load capacitance requirements

Crystals Applications

• Industrial control systems
• Portable consumer devices
• Short-range wireless modules
• Computer microprocessor clock sources

Crystals Procurement Notes

Verify the specific ordering suffix to confirm the exact load capacitance and tolerance specifications required for your circuit design. Ensure that the selected variant matches the PCB footprint dimensions and soldering profile guidelines provided in the official datasheet to maintain reliability during reflow processes.

Crystals Selection Notes

Select this component when a stable 8 MHz reference signal is needed within space-constrained designs. Consider the thermal characteristics and frequency stability requirements against the operational environment. Confirm compatibility with the oscillator circuit's input impedance and drive level limitations specified by the host microcontroller or logic device.

Crystals Part Context

This part belongs to the SX5A series of passive quartz crystals from Shenzhen SCTF Electronics. These components are engineered for general-purpose timing applications where precise frequency generation is critical. The series offers various frequency options and package sizes to accommodate diverse electronic product requirements across multiple industries.

Crystals Replacement Considerations

Cross-reference with other 8 MHz SMD crystals featuring identical 20 pF load capacitance and ±10 ppm tolerance. Verify mechanical footprint compatibility and electrical parameters before substitution to ensure circuit functionality remains unaffected.
