SX5DF100.000B20F30HNN

Oscillators Overview

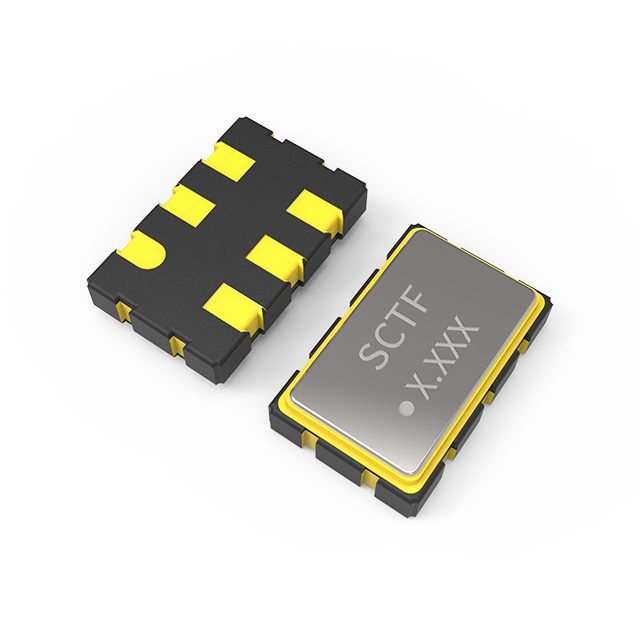

The SX5DF100.000B20F30HNN is a 100 MHz standard crystal oscillator manufactured by Shenzhen SCTF Electronics. It features HCSL output mode and operates on a 3.3V supply voltage. The device supports enable/disable functionality and is housed in a 6-SMD, No Lead package (SMD5032-6P).

Oscillators Feature Summary

• Provides HCSL differential output signals for high-speed digital interfaces.
• Supports active enable and disable control modes for power management.
• Designed with low jitter characteristics suitable for precision timing applications.

Oscillators Applications

• High-speed networking equipment clocking
• Telecommunication signal processing systems
• Consumer electronics requiring precise timing references

Oscillators Procurement Notes

Verify the specific suffix 'HNN' to confirm HCSL output compatibility, as other variants like 'DNN' utilize LVDS outputs. Ensure the design accommodates the SMD5032-6P footprint and 3.3V logic levels. Confirm that the enable/disable pin configuration aligns with the system's control requirements before finalizing procurement.

Oscillators Selection Notes

Select this component when HCSL interface compatibility is required rather than LVDS or CMOS. Consider the 100MHz frequency stability and the specific thermal operating range if deployed in extreme environments. Evaluate the enable/disable feature necessity against simpler always-on oscillator alternatives for power efficiency goals.

Oscillators Part Context

This model belongs to the SX5DF series of surface-mount crystal oscillators from SCTF. It shares the physical dimensions and general performance class with other members but differs in output protocol. The HNN suffix specifically denotes the HCSL output type, distinguishing it from LVDS or single-ended variants within the same product family.

Oscillators Replacement Considerations

SX5DF100.000B20F30DNN offers identical frequency and package but uses LVDS instead of HCSL output. Cross-referencing is only valid if the receiving circuitry supports differential signaling standards interchangeably or if level shifting is implemented.
