SX5M6.144A20F30TNN

Oscillators Overview

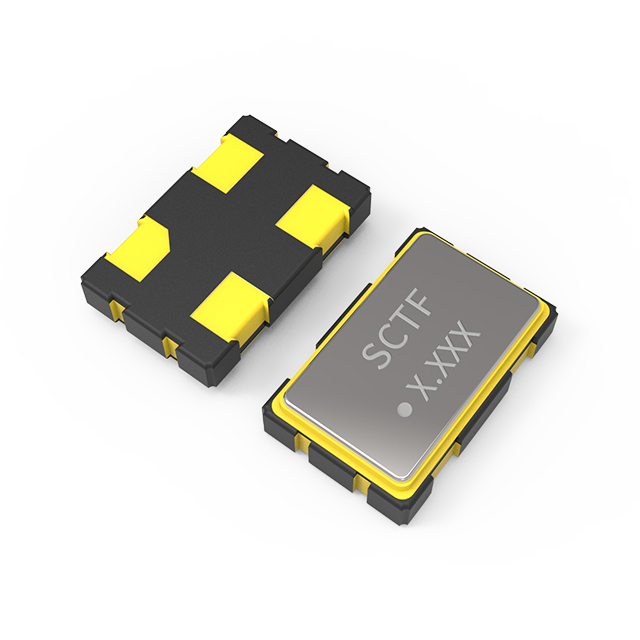

The SX5M6.144A20F30TNN is a standard CMOS crystal oscillator manufactured by Shenzhen SCTF Electronics, operating at a frequency of 6.144 MHz. It features a 4-SMD, no-lead package and supports a 5V enable/disable control function. The device is designed for applications requiring precise clock signals with low power consumption and stable performance in compact electronic systems.

Oscillators Feature Summary

• Standard CMOS output interface
• 5V enable/disable control capability
• Compact 4-SMD no-lead package design

Oscillators Applications

• General-purpose clock generation
• Embedded system timing references
• Consumer electronics devices

Oscillators Procurement Notes

Verify the manufacturer part number against official datasheets to ensure authenticity. Confirm package type and electrical specifications match application requirements before ordering.

Oscillators Selection Notes

Select this component for applications requiring a 6.144 MHz CMOS clock signal with enable/disable functionality. Ensure voltage levels and package dimensions are compatible with the target circuit design.

Oscillators Part Context

This oscillator belongs to the family of surface-mount crystal oscillators designed for space-constrained electronics. It provides reliable timing solutions for digital circuits requiring precise frequency stability.

Oscillators Replacement Considerations

Check for direct pin-to-pin replacements with identical frequency and package specifications from other manufacturers if supply constraints exist.
