LED Indication - Discrete Overview

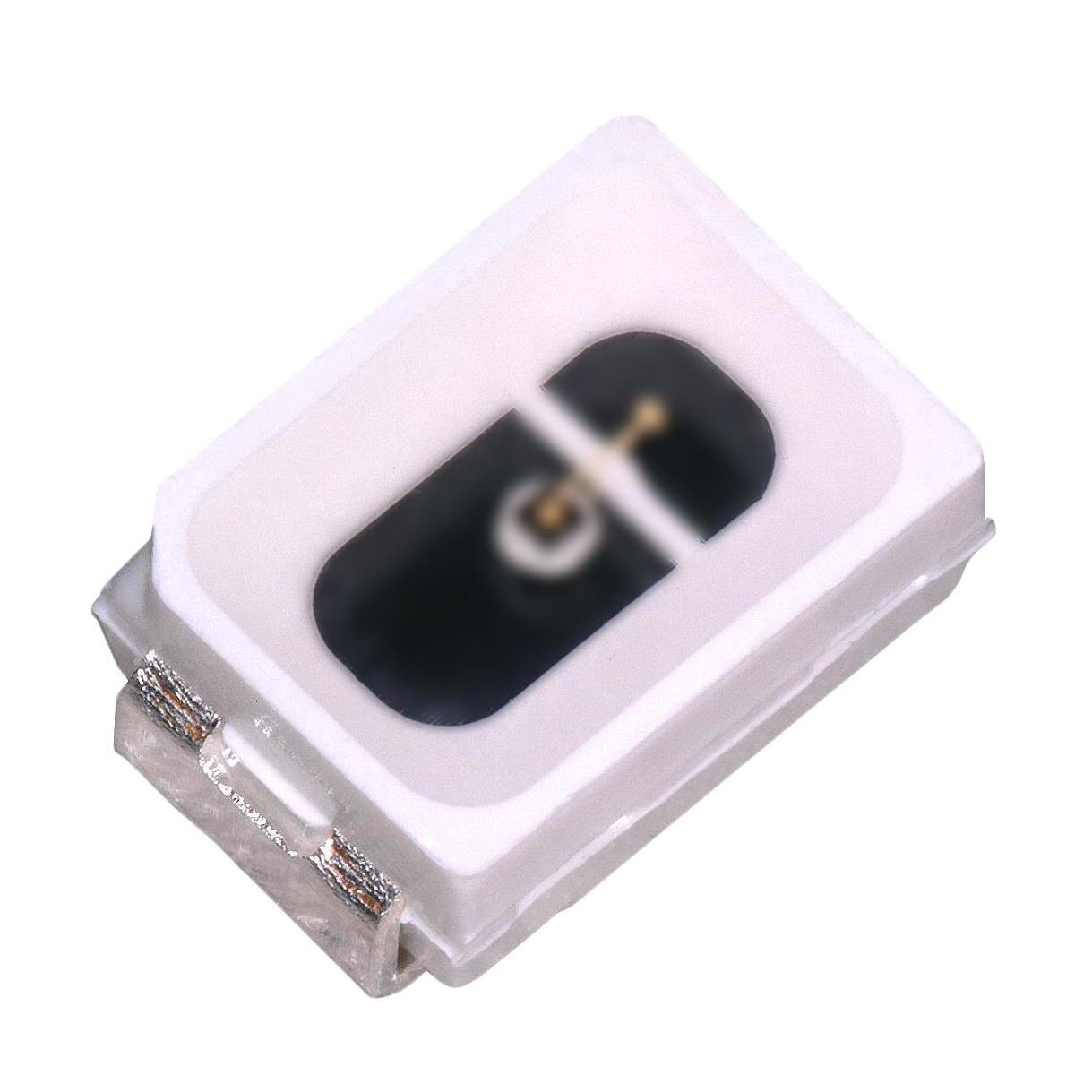

The T15B1UYG-20C000212U1930 is a discrete surface-mount LED indicator manufactured by Harvatek Corporation. It features a yellow-green color output with a dominant wavelength of 571nm and a peak wavelength of 578nm. The component operates at a typical forward voltage of 2.1V and emits light with an intensity of 40mcd when tested at 20mA. It utilizes a 2-SMD, J-Lead package with dimensions of 1.60mm in length, 1.00mm in width, and a maximum height of 0.60mm. The device offers a viewing angle of 120 degrees and is classified as RoHS compliant.

LED Indication - Discrete Feature Summary

• Compact SMD form factor with J-Lead configuration for reliable reflow soldering
• Wide 120-degree viewing angle for enhanced visibility
• Yellow-green spectral emission optimized for status indication

LED Indication - Discrete Applications

• Electronic device status indicators
• Panel-mounted signal lights
• Consumer electronics status displays

LED Indication - Discrete Procurement Notes

Verify the specific suffix codes against the manufacturer's official datasheet to ensure exact wavelength and binning alignment. Confirm that the J-Lead package variant matches the PCB footprint requirements. Check current RoHS compliance documentation for regulatory adherence in target markets. Ensure storage conditions respect the moisture sensitivity level specified in the product data sheet to prevent solderability issues during assembly.

LED Indication - Discrete Selection Notes

Select this component when a compact, high-visibility yellow-green indicator is required for space-constrained designs. The J-Lead package provides mechanical stability compared to standard flat leads. Consider the 120-degree viewing angle for applications requiring broad line-of-sight visibility. Evaluate the 2.1V forward voltage drop against the available drive voltage in the circuit design to ensure proper current limiting resistor selection.

LED Indication - Discrete Part Context

This part belongs to the Harvatek T15B1 series of surface-mount LEDs. The series includes various colors and package types designed for general-purpose indication. The T15B1UYG variant specifically targets yellow-green applications within the 1.60x1.00mm footprint family. It shares manufacturing processes with other colors in the series but differs in semiconductor material composition to achieve the specific spectral output.

LED Indication - Discrete Replacement Considerations

Direct substitutes must match the 2-SMD J-Lead package and 1.60x1.00mm dimensions. Verify equivalent yellow-green wavelength (approx. 571nm) and forward voltage characteristics. Cross-reference luminous intensity ratings to ensure comparable brightness levels. Confirm compatibility with standard reflow soldering profiles.
