T3160N14TOFVTXPSA1
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：SCR MODULE 1800V 7000A DO200AE
- Series：-
- Mfr：Infineon Technologies
- Package：Tray
- Structure：Single
- Number of SCRs, Diodes：1 SCR
- Voltage - Off State：1.8 kV
- Current - On State (It (AV)) (Max)：3160 A
- Current - On State (It (RMS)) (Max)：7000 A
- Current - Non Rep. Surge 50, 60Hz (Itsm)：57000A @ 50Hz
- Operating Temperature：-40°C ~ 125°C
- Mounting Type：Chassis Mount
- Package / Case：DO-200AE
- Voltage - Gate Trigger (Vgt) (Max)：2.5 V
- Current - Gate Trigger (Igt) (Max)：250 mA
- Current - Hold (Ih) (Max)：300 mA
- Grade：-
- Qualification：-
Download product information
Overview

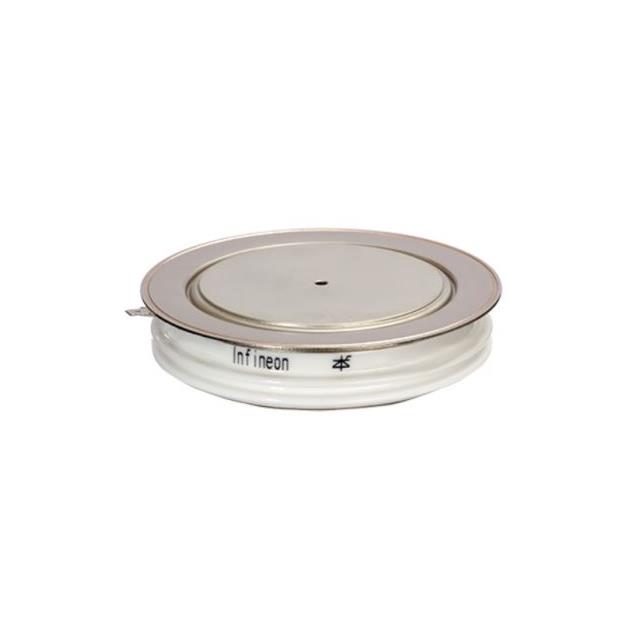

The T3160N14TOFVTXPSA1 is a high-power Silicon Controlled Rectifier (SCR) manufactured by Infineon Technologies. It belongs to the PCT (Phase Control Thyristor) series, designed for robust performance in demanding power electronics applications. The device features a disc package topology with a nominal repetitive peak reverse voltage of 1400V and a maximum on-state current rating of 3160A. This component utilizes electrically triggered phase control technology, ensuring stable operation under high load conditions.
Feature Summary
- High current carrying capability suitable for heavy industrial loads
- Robust construction using sealed ceramic housing for durability
- Designed for reliable phase control operations in AC circuits
Applications
- Industrial motor drives requiring high current handling
- Static power switching systems for heavy machinery
- HVDC transmission equipment components
Procurement Notes
Verify the complete part number including the XPSA1 suffix against official Infineon documentation to ensure correct configuration. Confirm that the specific ordering code matches the required electrical ratings and packaging specifications before finalizing procurement orders.
Selection Notes
Select this component based on its 1400V blocking voltage and 3160A current capacity requirements. Ensure the application circuit design accommodates the thermal management needs associated with high-power SCR modules and verify compatibility with the intended triggering mechanisms.
Part Context
This device is part of Infineon's extensive portfolio of bipolar power semiconductors. It shares family characteristics with other high-current thyristors like the T3841N18TOFVTXPSA1, differing primarily in voltage and current ratings. These components are engineered for critical infrastructure where reliability is paramount.
Replacement Considerations
Direct substitutes must match the 1400V/3160A specification. Review datasheets for equivalent models from the same manufacturer or competitors to ensure pinout and thermal interface compatibility.
