TFC-110-12-F-D-A

Headers, Male Pins Overview

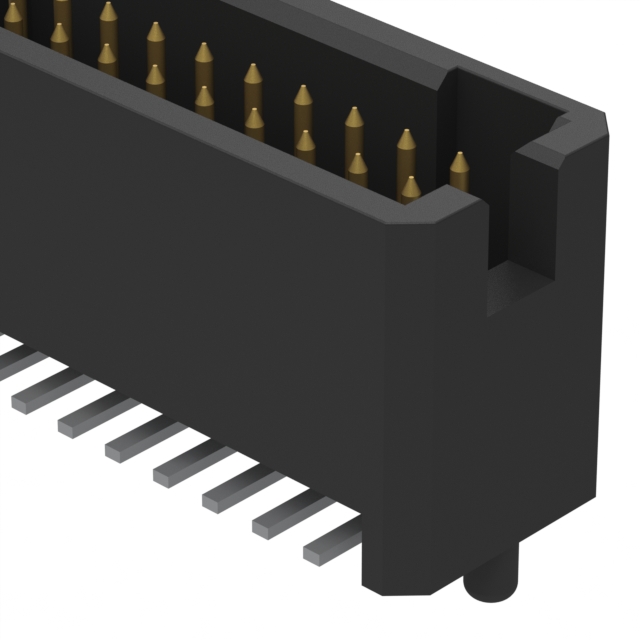

The TFC-110-12-F-D-A is a .050" (1.27mm) pitch terminal strip header from the Tiger Eye™ TFC series by Samtec Inc. It features 12 positions arranged in a dual-row configuration with male pin contacts. Designed for surface-mount installation, the connector utilizes phosphor bronze terminals with gold plating on the mating interface and tin plating on the tail. The black liquid crystal polymer (LCP) insulator provides UL94 V-0 flammability rating. Rated for 3.1A per contact and 350VAC, it operates within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• Shrouded four-wall body design enables blind mating and precise alignment during assembly
• Surface-mount termination style ensures secure PCB attachment via solder joints
• Gold-plated mating surfaces provide reliable electrical conductivity and corrosion resistance

Headers, Male Pins Applications

• Industrial automation control systems
• Medical device interconnects
• Automotive electronic modules
• Military equipment connections

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required position count and row configuration. Confirm surface-mount compatibility with your PCB fabrication capabilities. Ensure the operating environment falls within the specified temperature and voltage ratings. Check RoHS compliance status if required by your supply chain regulations.

Headers, Male Pins Selection Notes

Select this component when a low-profile, cost-effective header is needed for board-to-board or cable applications. The dual-row format suits space-constrained designs requiring higher density. Consider the shrouded housing for improved mating accuracy compared to open-frame alternatives.

Headers, Male Pins Part Context

This component belongs to the Tiger Eye™ TFC series, which offers cost-effective terminal strips with .050" pitch. The series is designed for reliable performance in various industries including industrial, automation, military, automotive, and medical sectors. It mates with SFC socket strips and SFSD/SFSDT cable assemblies.

Headers, Male Pins Replacement Considerations

Compatible mating connectors include the SFC series sockets. Cable assemblies from the SFSD and SFSDT families are suitable counterparts. Verify dimensional compatibility before substituting with other .050" pitch headers.
