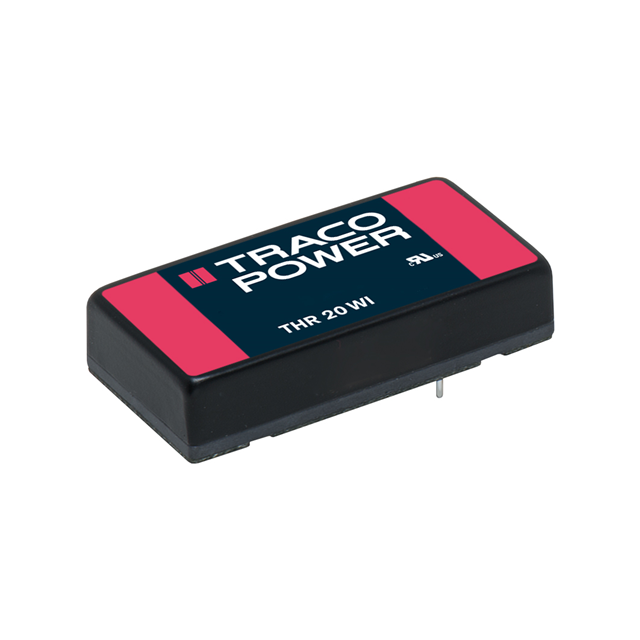

THR 20-7223WI

THR 20-7223WI is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is 20 WATT DC/DC CONVERTER, INDUSTR. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for THR 20-7223WI

• Description：20 WATT DC/DC CONVERTER, INDUSTR
• Series：THR 20WI (20W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：40V
• Voltage - Input (Max)：160V
• Voltage - Output 1：15V
• Voltage - Output 2：-15V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：667mA, 667mA
• Power (Watts)：20 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 80°C (With Derating)
• Efficiency：86%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：2.00" L x 1.00" W x 0.43" H (50.8mm x 25.4mm x 11.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CB, cURus
• Standard Number：62368-1

DC DC Converters datasheet and documents for THR 20-7223WI
