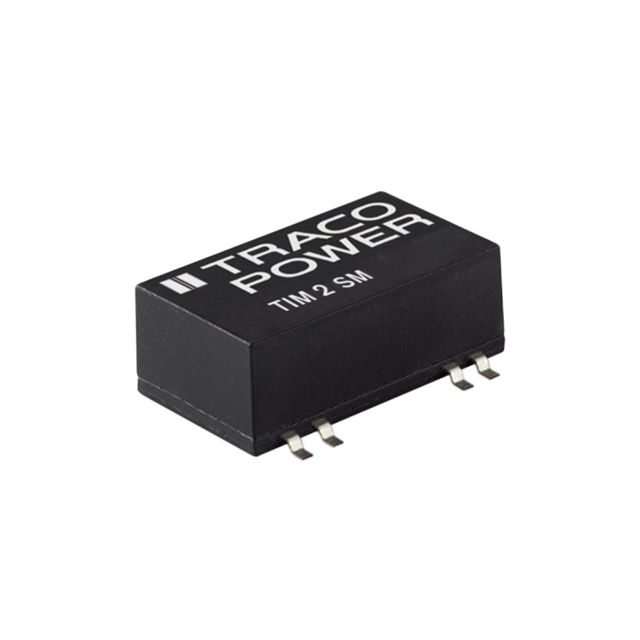

TIM 2-4813SM

TIM 2-4813SM is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER 15V 2W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TIM 2-4813SM

• Description：DC DC CONVERTER 15V 2W
• Series：TIM 2SM (2W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：134mA
• Power (Watts)：2 W
• Voltage - Isolation：5 kV
• Applications：Medical
• Features：Remote On/Off, OVP, SCP
• Operating Temperature：-40°C ~ 95°C (With Derating)
• Efficiency：81%
• Mounting Type：Surface Mount
• Package / Case：16-SMD Module, 7 Leads
• Size / Dimension：0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for TIM 2-4813SM
