TMIM0503S-R82MG-D02

Fixed Inductors Overview

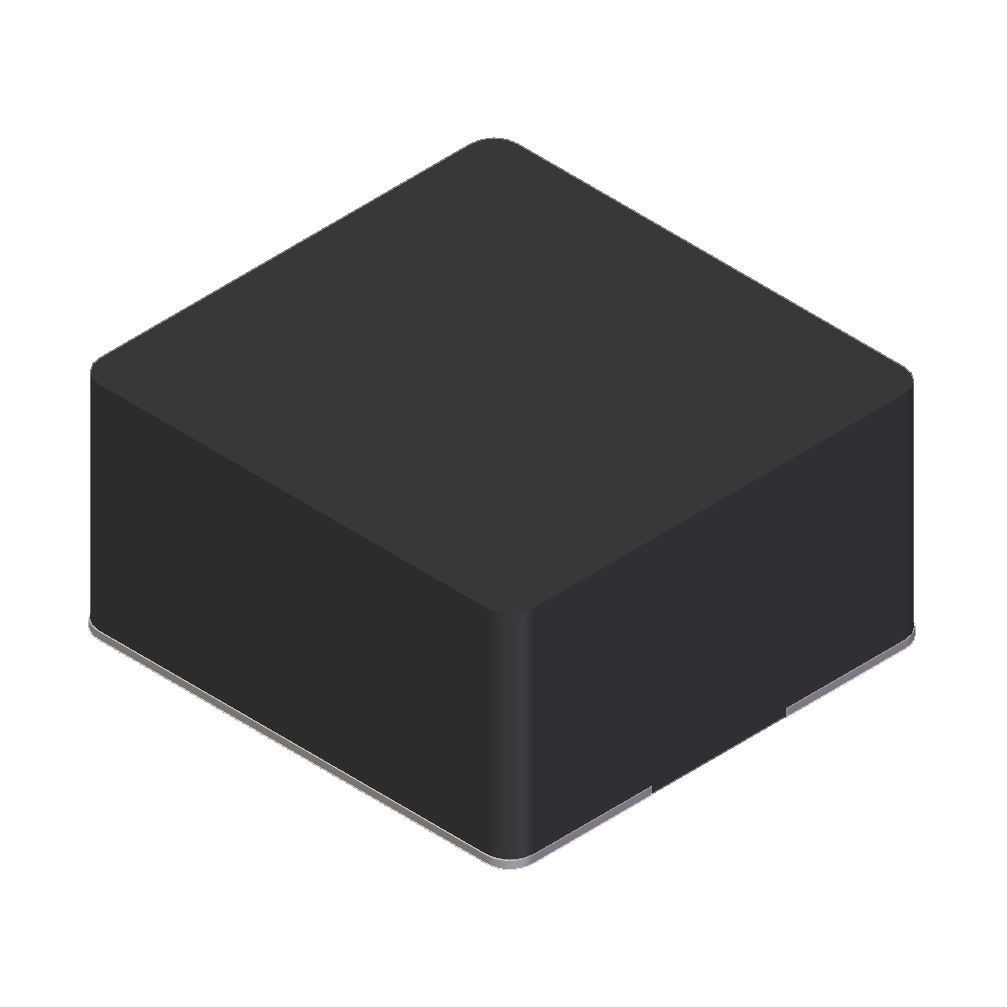

The TMIM0503S-R82MG-D02 is a fixed surface-mount inductor manufactured by TAI-TECH Advanced Electronics Co., Ltd. It features an inductance of 0.82 µH and a maximum DC resistance of 4.9 mΩ. The component supports a saturation current of 16.5 A and operates within a temperature range of -40°C to +125°C. Designed for high-current applications, it utilizes a laminated chip construction suitable for automated assembly processes.

Fixed Inductors Feature Summary

• High current handling capability with 16.5 A saturation rating
• Low DC resistance of 4.9 mΩ for efficient power delivery
• Laminated chip construction for compact SMD integration

Fixed Inductors Applications

• Power supply modules
• DC-DC converters
• Telecommunications equipment

Fixed Inductors Procurement Notes

Verify the manufacturer part number TMIM0503S-R82MG-D02 against official TAI-TECH documentation to confirm specifications. Ensure compatibility with required current ratings and thermal management strategies. Cross-reference datasheet parameters for inductance and resistance values prior to integration into final designs.

Fixed Inductors Selection Notes

Select this component when designing circuits requiring high saturation current and low impedance in a small form factor. Consider the 0.82 µH value and 16.5 A rating relative to load requirements. Evaluate thermal performance at operating temperatures up to 125°C to ensure reliability under continuous load conditions.

Fixed Inductors Part Context

This inductor belongs to the TMIM series from TAI-TECH, which specializes in laminated chip inductive components. The series is engineered for high-performance power applications, offering robust magnetic shielding and stable electrical characteristics suitable for modern electronic systems requiring efficient energy storage.

Fixed Inductors Replacement Considerations

Consult official TAI-TECH substitution lists for verified alternatives. Ensure replacement parts match the 0.82 µH inductance, 16.5 A current rating, and 4.9 mΩ resistance specifications while maintaining compatible package dimensions.
