TSM-102-01-T-SH-TR

Headers, Male Pins Overview

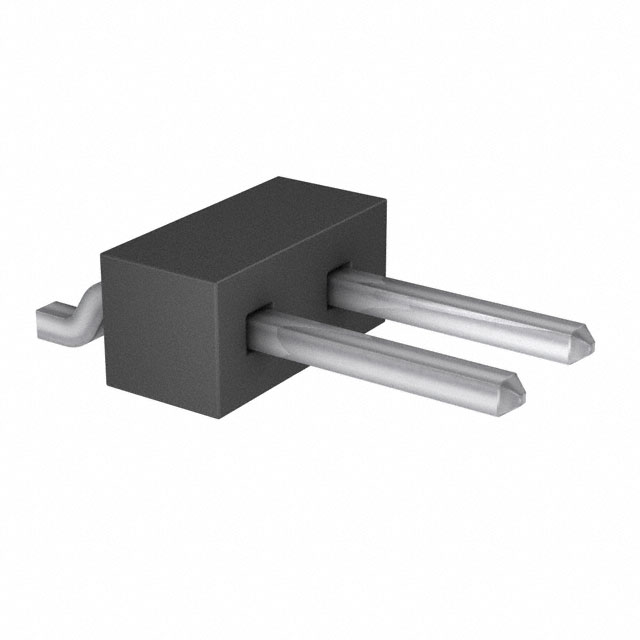

The TSM-102-01-T-SH-TR is a surface mount terminal strip from the Samtec TSM series. It features a 2-position, single-row configuration with a 2.54 mm (0.1 in) pitch. The connector utilizes phosphor bronze contacts with gold plating and a liquid crystal polymer insulator rated UL 94 V-0. Designed for right-angle installation, it supports solder pin termination and operates within a temperature range of -55°C to +125°C. The mating contact length is 5.84 mm.

Headers, Male Pins Feature Summary

• Right-angle surface mount design for compact board-to-board connections
• Gold-plated phosphor bronze contacts ensure reliable signal transmission
• High-temperature resistant LCP insulator housing for thermal stability

Headers, Male Pins Applications

• Board-to-board interconnects
• Cable-to-board connections
• Compact electronic assemblies requiring right-angle routing

Headers, Male Pins Procurement Notes

Verify the specific suffix 'T' indicates tin-plated contacts if required, as some variants use gold. Confirm the right-angle orientation matches the PCB layout constraints. Ensure the reel packaging quantity aligns with production volume needs. Cross-reference the RoHS compliance status with current regulatory requirements for the target market.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle header is necessary for space-constrained designs. The 2.54 mm pitch ensures compatibility with standard through-hole or surface mount counterparts. Consider the operating temperature range and current rating against the application's electrical load requirements before finalizing the design.

Headers, Male Pins Part Context

This part belongs to the TSM series of flexible stacking solutions by Samtec. These headers are designed for high-density applications where vertical space is limited. The series offers various configurations including straight and right-angle options, supporting both surface mount and through-hole technologies for versatile integration.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Samtec TSM series parts with identical 2-position, right-angle, SMT specifications. Verify contact plating material and insulation height compatibility. Generic equivalents may lack the precise stacking flexibility and thermal performance of the original TSM design.
