TSM-106-02-LM-DH-SL-003-K-TR

Headers, Male Pins Overview

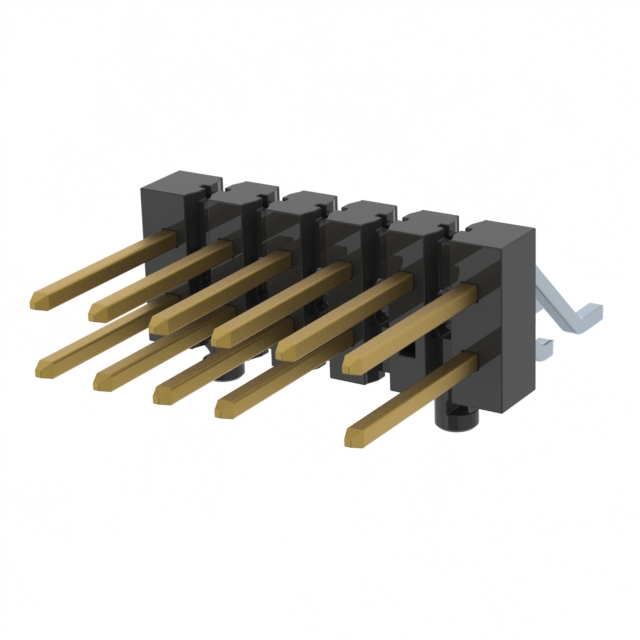

The TSM-106-02-LM-DH-SL-003-K-TR is a surface mount terminal strip manufactured by Samtec Inc. It features a .100" (2.54 mm) pitch and utilizes .025" (.635 mm) square post contacts. The component is configured as a double row header with straight pins, designed for vertical orientation. It supports mixed technology termination options suitable for surface mount applications.

Headers, Male Pins Feature Summary

• Utilizes .025" square post contact system for reliable interconnection
• Designed specifically for surface mount processing with mixed technology pin options
• Available in single, double, and triple row configurations

Headers, Male Pins Applications

• Embedded communication systems
• Automotive A-Series product integration
• General surface mount PCB connections

Headers, Male Pins Procurement Notes

Verify the specific configuration against the official Series Print before final design implementation to ensure alignment with mechanical requirements. Confirm that the selected variant meets all necessary environmental testing standards, including Mixed Flowing Gas (MFG) qualification, prior to procurement. Cross-reference CAD models for accurate footprint representation.

Headers, Male Pins Selection Notes

Select this component when a .100" pitch surface mount solution is required. Consider the available standard post heights to ensure compatibility with mating socket components. Evaluate the need for extended life product testing qualifications if operating in severe environments or requiring high mating cycle durability.

Headers, Male Pins Part Context

This part belongs to the TSM series of .100" Surface Mount Terminal Strips. The series offers various row options and pin orientations, including straight and right-angle configurations. It is engineered to provide stable operation and integrates with existing software tools for design verification.

Headers, Male Pins Replacement Considerations

Compatible substitutes within the same family include TSM-106-02-F-DH-A-001-P-TR and TSM-106-02-LM-DH-SL-003-K. Verify pin count, row configuration, and termination style match before substitution.
