TSM-120-01-H-DV-A

Headers, Male Pins Overview

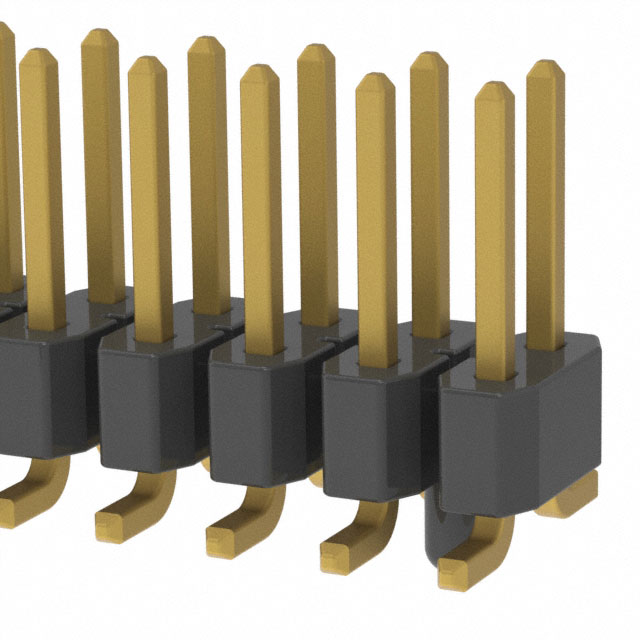

The TSM-120-01-H-DV-A is a surface mount header connector from the Samtec TSM series. It features 40 positions arranged in two rows with a 0.100 inch (2.54 mm) pitch. The connector utilizes square pins made of phosphor bronze, plated with gold on both mating and tail surfaces. It is designed for board-to-board or cable applications, offering a locking clip option and compatibility with pick-and-place assembly processes.

Headers, Male Pins Feature Summary

• Features a double vertical pin configuration for flexible stacking solutions.
• Includes a locking clip mechanism to secure mating connections.
• Supports automated pick-and-place manufacturing processes.

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• Flexible stacking applications

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Samtec documentation to ensure correct pin configuration and termination style. Confirm that the -DV designation matches the required double vertical layout and that the -A suffix corresponds to the intended alignment or accessory requirements. Cross-reference the package type to ensure compatibility with your assembly equipment specifications.

Headers, Male Pins Selection Notes

Select this component when a 0.100 inch pitch surface mount header with double vertical orientation is required. Ensure the application supports the specified operating temperature range and insulation material properties. Verify that the board design accommodates the specific footprint dimensions and that the locking clip feature aligns with the mechanical constraints of the assembly.

Headers, Male Pins Part Context

This part belongs to the TSM series of flexible stacking headers by Samtec Inc. These connectors are engineered for high-density applications requiring reliable electrical connections in compact spaces. The series offers various configurations to meet diverse spacing and height requirements in modern electronic assemblies.

Headers, Male Pins Replacement Considerations

Consult official Samtec substitution guides for verified alternatives. Generic equivalents may not match the precise double vertical geometry or locking clip mechanics. Verify dimensional compatibility and electrical ratings before considering any cross-references.
