TSV620AICT

Instrumentation, Op Amps, Buffer Amps Overview

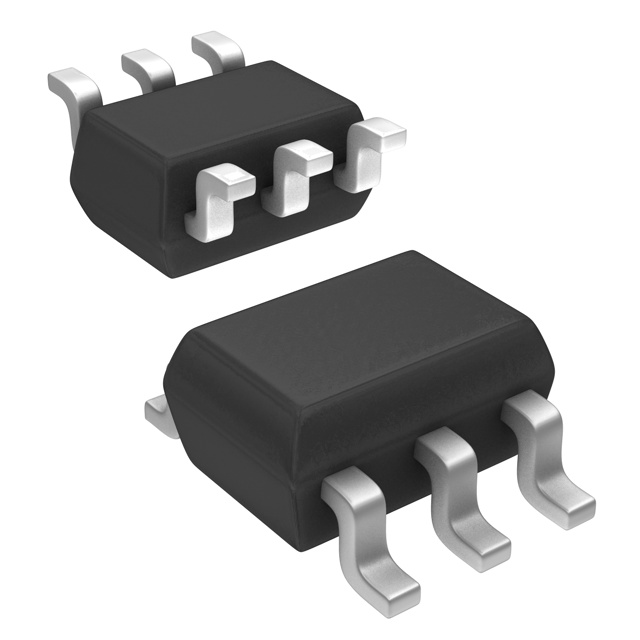

The TSV620AICT is a single-channel CMOS operational amplifier manufactured by STMicroelectronics. It features rail-to-rail input and output capabilities, supporting a supply voltage range of 1.5 V to 5.5 V. Key electrical parameters include a gain-bandwidth product of 420 kHz, a slew rate of 140 mV/us, and an input offset voltage of 800 uV. The device operates with a quiescent current of 36 uA per channel and provides an output current of 74 mA. It exhibits an input bias current of 10 pA, a common-mode rejection ratio of 60 dB, and an input voltage noise density of 70 nV/sqrt Hz. The component is housed in a SC-70-6 package and supports shutdown functionality.

Instrumentation, Op Amps, Buffer Amps Feature Summary

• Rail-to-rail input and output operation for maximum dynamic range
• Low power consumption suitable for battery-powered applications
• High tolerance to electrostatic discharge events
• Unity gain stability with capacitive loads

Instrumentation, Op Amps, Buffer Amps Applications

• Sensor signal conditioning interfaces
• Portable electronic devices requiring extended battery life
• Active filtering circuits

Instrumentation, Op Amps, Buffer Amps Procurement Notes

Verify the specific suffix 'ICT' against the manufacturer's official documentation to confirm the exact packaging configuration, such as cut tape or reel specifications. Ensure the 'A' grade designation aligns with required offset voltage tolerances. Confirm RoHS compliance status through the latest datasheet revision. Validate that the SC-70-6 package dimensions match the target PCB footprint constraints. Cross-reference the part number with authorized distributors to ensure authenticity and traceability.

Instrumentation, Op Amps, Buffer Amps Selection Notes

Select this component when a single-channel op amp with rail-to-rail performance is required in a compact SC-70-6 package. It is suitable for designs prioritizing low power consumption alongside moderate bandwidth needs. Consider the 800 uV maximum offset voltage if precision DC amplification is necessary. Verify that the 1.5 V minimum supply voltage meets the system's lowest operating condition requirements.

Instrumentation, Op Amps, Buffer Amps Part Context

This part belongs to the TSV620A series of micro-power operational amplifiers from STMicroelectronics. The series is characterized by its CMOS technology, offering a balance between speed and power efficiency. The TSV620 variant specifically denotes a single-channel configuration within this family, designed for space-constrained portable electronics.

Instrumentation, Op Amps, Buffer Amps Replacement Considerations

Consult official substitution guides for compatible single-channel rail-to-rail amplifiers in SC-70-6 packages. Verify pin compatibility and electrical parameter equivalence before replacing.
